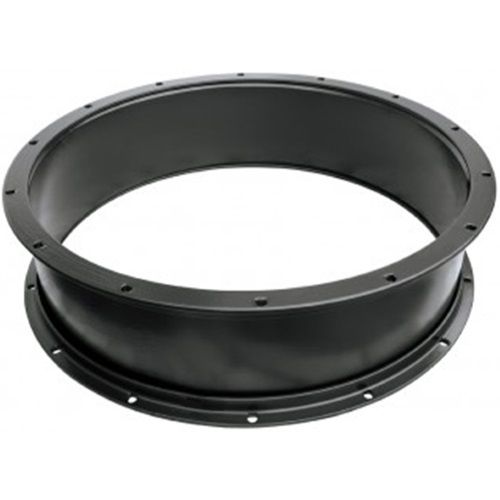

Viking Johnson Dedicated Mild Steel Large Diameter Pipe Coupling
Centre sleeve & end rings made of mild steel (S275JR) to BS EN 10025-2
Coated in black Rilsan (nylon 11) for increased resistance to impact, corrosion, abrasion & chemical
For used with plain ended ductile iron pipe
EPDM Rubber gaskets
Setting gap: See datasheet
Sleeve type: See datasheet
Bolt tightening torque: See datasheet
Allows up to 6° of angular deflection between pipes to accommodate for normal pipeline movement
Can accommodate expansion/contraction (up to 10mm) allowing movement and eliminating the need for expansion joints in most cases
Maximum operating pressure: 29.2 bar
