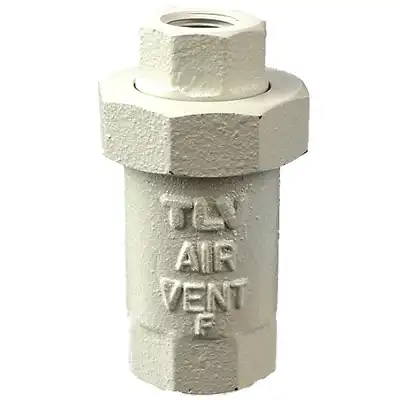

3/4″ TLV VAS Cast Iron Rapid Initial Air Vent

Brand: TLV
SKU: 76VAS020
Availability:In stock (can be backordered)

£265.00 ex. VAT

In stock (can be backordered)

About this product

3/4″ TLV VAS Cast Iron Rapid Initial Air Vent

Float-type mechanical valve rapidly vents air from water systems during start-up

Main body elements made of cast iron A126 (FC250)

Female BSPT taper threaded ends to DIN 2999 (3/4″ Inlet x 1/2″ Outlet)

Designed for use with hot and cold water as well as other non-toxic or flammable liquids

Large orifice can vent large volumes of initial air for fast start-up

Stainless steel 316 free float and valve seat with NBR rubber seat contact guarantees a tight seal when vent is closed

Single moving part, the free float, eliminates concentrated wear for a long service life

Aids drainage of the system by introducing air during the draining process

Functions as a vacuum breaker as well as an air vent

Suitable for vertical installation only

Discharging capacity: Up to 180 l/min

Minimum operating pressure: 0.1 bar

Maximum operating pressure: 10 bar

Maximum operating temperature: 100°C

Specification

Weight 0.6 kg
Dimensions 60 × 97 × 60 mm
Valve Size

3/4" NB

Brand

Valve Type

Air Vent

Connections

Female BSPT Taper Threaded (DIN 2999)

Operation

Free Float (Mechanical)

Body Material

Cast Iron FC250

Float Material

Stainless Steel 316L

Body Gasket Material

NBR

Seat Material

NBR

Maximum Operating Pressure

10 bar

Operating Temperature Range

0°C – 100°C

Additional Information

Functions as a rapid initial air vent and vacuum breaker.

Certification Availability

Contact Us (Chargeable, may increase delivery time.)
