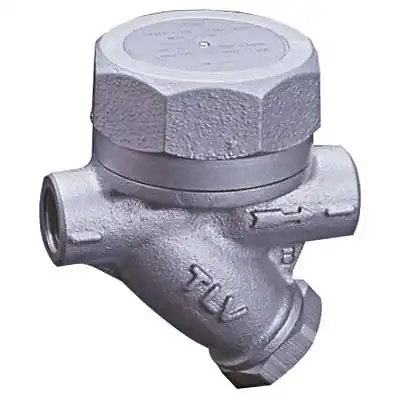

TLV A3N Cast Iron Thermodynamic Steam Trap

Brand: TLV
SKU: 76A3N

£0.00 ex. VAT

About this product

TLV A3N Cast Iron Thermodynamic Disc Type Steam Trap

Body made of malleable cast iron A47

Female BSPT taper threaded ends to DIN 2999

Steam-jacketed pressure chamber reduces no-load cycling

Replaceable module valve seat made of stainless steel

Quick thermostatic air venting with bimetal ring for quick start-up

Lapped stainless steel disc provides a steam-tight seal without air binding

Built-in stainless steel screen for trouble free service

Reusable, high grade PTFE gaskets

Hardened working surfaces for a long life

Maximum capacity: 650kg/h

Maximum operating pressure: 13 bar

Maximum operating temperature: 200°C

Specification

Weight N/A
Dimensions N/A
Brand

Valve Type

Thermostatic Steam Trap

Connections

Female BSPT Taper Threaded (DIN 2999)

Body Material

Cast Malleable Iron A47

Disc Material

Stainless Steel 420

Screen Material

Stainless Steel 430

Body Gasket Material

PTFE

O-Rings Material

PTFE

Maximum Operating Pressure

13 bar

Operating Temperature Range

0°C – 200°C

Maximum Discharge Capacity

650kg/h

Additional Information

Replaceable valve module. Thermostatic air venting. Bimetal ring for fast start-up.

Certification Availability

Contact Us (Chargeable, may increase delivery time.)
