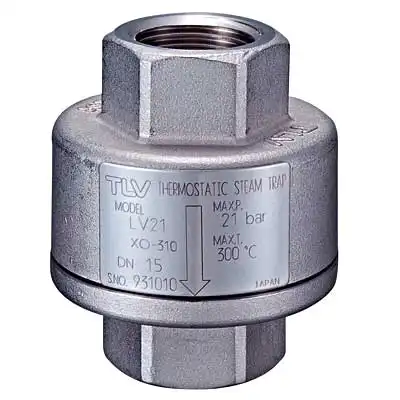

TLV LV21 Stainless Steel Thermostatic Steam Trap
Main body made of cast stainless steel A351
Female BSPT taper threaded ends to DIN 2999
Stainless steel X-element with a fail-open design
Compact, rugged and lightweight design with high discharge capacity, can withstand superheat and water hammer
Cyclic operation with fixed sub cooling throughout the entire pressure range
Built-in stainless steel 304 screen for trouble-free operation
Easy to clean and maintain
Ideal for use where the condensate load is small, such as tracers, vessels and heaters
Suitable for vertical installation
Discharge capacity: Up to 700kg/h
Minimum operating pressure: 0.1 bar
Maximum operating pressure: 21 bar
Maximum operating temperature 235°C
