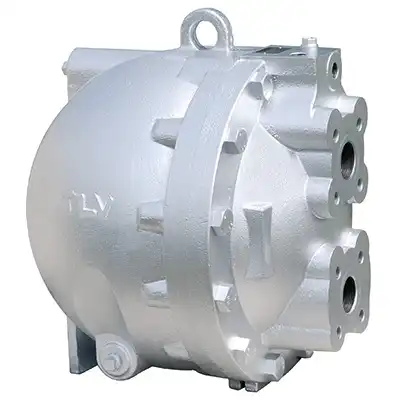

1 1/2″ TLV GT14M Cast Iron Mechanical Pump Trap
| Brand: | TLV |
|---|---|
| SKU: | 76GT14M040 |
| Availability: | In stock (can be backordered) |
£8,598.93 ex. VAT
In stock (can be backordered)
About this product
1 1/2″ TLV GT14M Cast Iron Mechanical Pump Trap
Main body elements made of cast iron FC250
PN16 Flanged ends to BS EN 1092-1 on inlet & outlet for pumped medium
1/2″ BSP threaded motive inlet, for use with saturated steam
1/2″ BSP threaded pump exhaust port/outlet
Compact pump design allows for installation in confined spaces
Built-in stainless steel steam trap
Built-in stainless steel check valves on inlet & outlet ports for pumped medium (Inlet: CKF5M x Outlet: CKF3M)
Can handle high-temperature steam condensate without cavitation
No electrical supply or additional controls required making the GT14M intrinsically safe
Pump will operate with a low filling-head (Minimum: 350mm)
High quality stainless steel internals with inline access guarantee easy cleaning and maintenance as well as a long service life
Ideal for a range of applications including drainage of heat exchangers, flash steam recovery systems and reservoirs, often operating under vacuum conditions
Pump discharge capacity: Up to approx. 3300 kg/h (3.3 t/h)
Maximum operating pressure (motive): 13 bar
Maximum operating temperature: 200°C
Specification
| Weight | 86 kg |
|---|---|
| Dimensions | 420 × 463 × 400 mm |
| Valve Size | 1 1/2" NB |
| Brand | |
| Valve Type | Condensate Recovery Pump |
| Connections | Female BSPT Taper Threaded (DIN 2999) |
| Body Material | Cast Iron FC250 |
| Float Material | Stainless Steel 316 |
| Steam Trap Material | Stainless Steel |
| Body Gasket Material | Graphite Compound |
| Maximum Operating Pressure | 13 bar |
| Motive Medium Pressure Range | 0.3 – 13 bar |
| Operating Temperature Range | 0°C – 200°C |
| Maximum Discharge Capacity | Up to 3300kg/h (3.3t/h) |
| Approvals | CE Marked (Quality). Pressure Equipment Directive (PED) 2014/68/EU Compliant (Safety). |
| Additional Information | 1/2" BSP Motive medium inlet & exhaust outlet. Built-in steam trap, built-in check valves on condensate inlet & outlet. Intrinsically safe. Can operate with low filling head. |
| Certification Availability | Contact Us (Chargeable, may increase delivery time.) |
