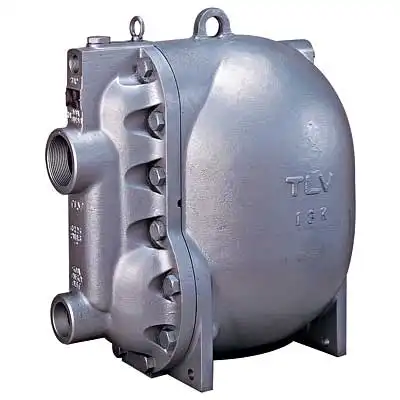

3″ x 2″ TLV GT14 Cast Steel Mechanical Pump Trap
| Brand: | TLV |
|---|---|
| SKU: | 76GT14080 |
| Availability: | In stock (can be backordered) |
£11,970.00 ex. VAT
In stock (can be backordered)
About this product
3″ x 2″ TLV GT14 PowerTrap Cast Steel Mechanical Pump Trap
Main body components made of cast steel ASTM A216 WCB
Female BSPT taper threaded ends to DIN 2999 (3″ Inlet x 2″ Outlet)
1″ NB Threaded motive medium inlet, for use with saturated steam
1″ NB Threaded pump exhaust outlet
Built-in stainless steel steam trap
Built-in CK3MG stainless check valves on pumped medium inlet & outlet (not shown)
Can handle high-temperature steam condensate without cavitation
No electrical supply or additional controls required making the GT14 intrinsically safe
Pump will operate with a low filling-head (Minimum: 710mm)
Durable nickel-based alloy compression coil spring
High quality stainless steel internals with inline access guarantee easy cleaning and maintenance as well as a long service life
Ideal for a range of applications such as drainage of heat exchangers, flash steam recovery systems and non-vented receivers such as low-pressure stages of turbines or absorption chillers, often operating under vacuum conditions
Pump discharge capacity: Up to approx. 5500kg/h
Steam consumption: Up to 6kg per tonne pumped
Maximum operating pressure: 13 bar
Maximum operating temperature: 200°C
Specification
| Weight | 139 kg |
|---|---|
| Dimensions | 570 × 610 × 430 mm |
| Valve Size | 3" x 2" NB |
| Brand | |
| Valve Type | Condensate Recovery Pump |
| Connections | Female BSPT Taper Threaded (DIN 2999) |
| Body Material | Cast Steel A216 |
| Float Material | Stainless Steel 316 |
| Steam Trap Material | Stainless Steel |
| Body Gasket Material | Graphite Compound |
| Maximum Operating Pressure | 14 bar |
| Motive Medium Pressure Range | 0.3 – 14 bar |
| Operating Temperature Range | 0°C – 200°C |
| Maximum Discharge Capacity | Up to 5500kg/h (5.5t/h) |
| Approvals | CE Marked (Quality). Pressure Equipment Directive (PED) 2014/68/EU Compliant (Safety). |
| Additional Information | 1" BSP Motive medium inlet & exhaust outlet. Built-in steam trap, built-in check valves on condensate inlet & outlet. Intrinsically safe. Can operate with low filling head. |
| Certification Availability | Contact Us (Chargeable, may increase delivery time.) |
