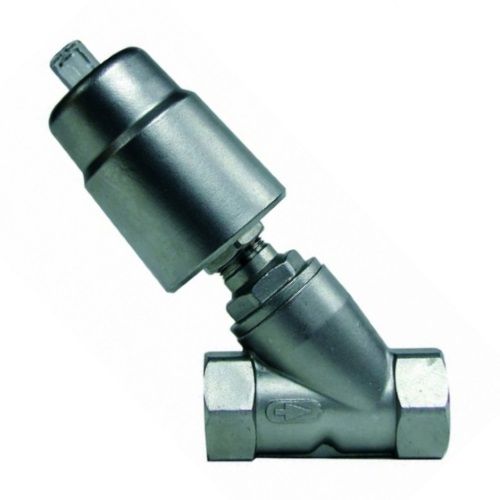

1/2″ Genebre Art5060 Stainless Steel Angled Seat Valve with Spring Return Pneumatic Actuator
Angled seat valve, also known as a slanted seat valve
Made in Stainless Steel CF8M
Spring return pneumatic actuator (normal close)
Seat made of PTFE
Comes with female BSPT taper threaded ends conforming to the ISO 7-1 & BS EN 10226-1 standards
Position indicator
Maximum operating pressure: 16 bar (PN16)
Actuator control pressure: 3 – 8 bar
Operating temperature range: -10°C – 180°C
Maximum fluid viscosity: 600 mm2/s
