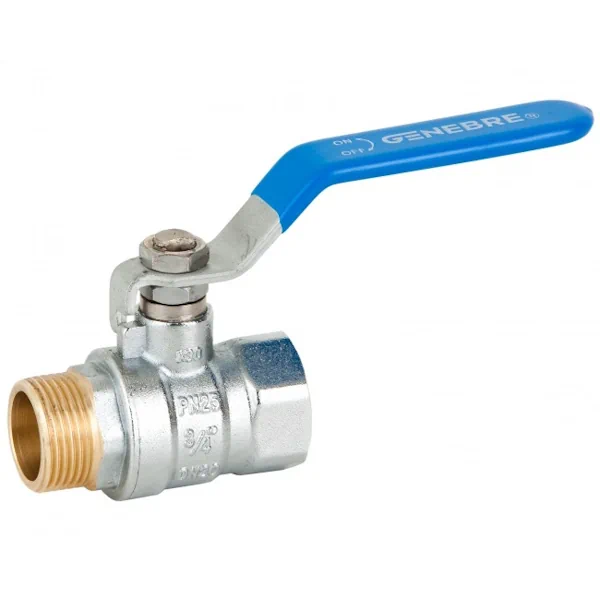

Genebre Art3034 Male/Female Brass Ball Valve (PN25)

Brand:	Genebre
SKU:	32ART3034

£2.82 – £23.80 ex. VAT

Valve Size

Clear

About this product

Full bore male/female ball valve

2-Piece body made of chrome plated brass (CW617N) conforming to UNE-EN 12165

Male & Female BSPP parallel threaded ends to ISO 228-1

Chrome plated brass ball with PTFE ball seats/seals

Stem made of chrome plated brass with NBR O-ring and PTFE stem packing

Operated by steel lever handle

Maximum operating pressure: 25 bar (PN25) at up to 80°C

Operating temperature range: -20°C – 110°C

Weight	N/A
Dimensions	N/A
Brand	Genebre
Valve Type	2-Piece Full Bore Ball Valve
Connections	Male/Female BSP Threaded – ISO 228-1, BS EN 10226-1
Operation	Manual Lever Handle Operated
Body Material	Brass (Chrome Plated)
Ball Material	Brass (Chrome Plated)
Stem Material	Brass (Chrome Plated)
Ball Seat Material	PTFE
Stem Packing Material	PTFE
Stem O-Ring Material	NBR
Maximum Operating Pressure	25 bar
Operating Temperature Range	-20°C – 110°C
Certification Availability	N/A
