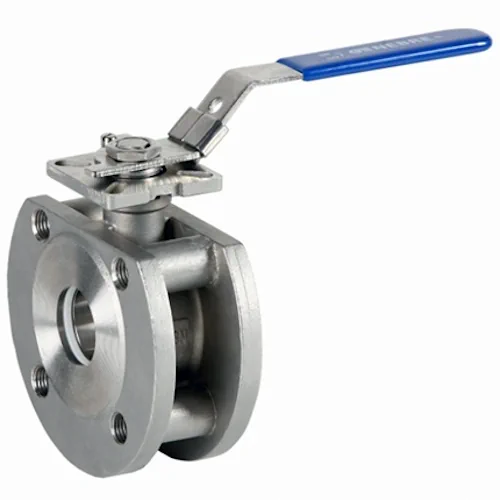

Genebre Art2118 Full Bore Stainless Steel Direct Mount Wafer Ball Valve
Lever operated wafer type ball valve with a full interior bore
Body and plug made of shot blasted stainless steel 1.4408 (CF8M), sealed with a PTFE gasket
For installation between PN16 steel pipe flanges to BS EN 1092-1:2018
Ball made of stainless steel 1.4408 (CF8M) with PTFE & graphite ball seats/seals
Blow out proof stem stainless steel 316 stem with an FKM (viton) O-ring and PTFE stem packing
Flange diameter: See datasheet
Bolt holes: See datasheet
ISO 5211 direct mounting plate for actuator installation
Value torque at zero pressure: See datasheet
Built-in stainless steel 304 locking lever with a vinyl sleeve
Maximum operating pressure: 16 bar (PN16) at up to 75°C
Operating temperature range: -20°C – 180°C
