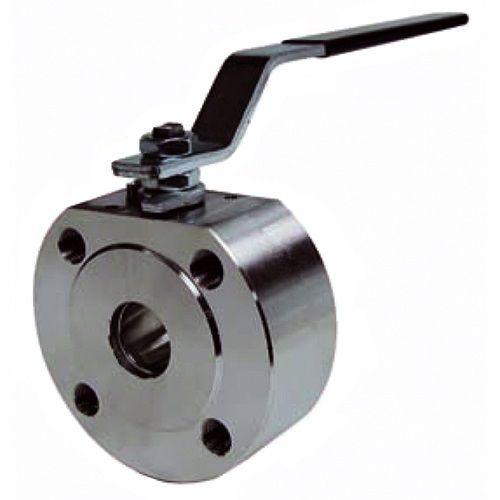

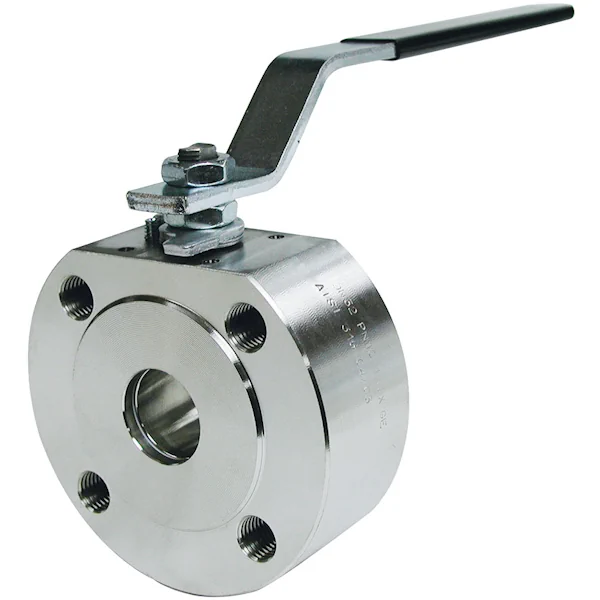

Genebre Art2110 Full Bore Stainless Steel Wafer Ball Valve
Lever operated wafer type ball valve with a full interior bore
Stainless steel ASTM A182 F316 body and plug sealed with a PTFE gasket
For installation between PN16 steel pipe flanges to BS EN 1092-1:2018
Ball made of stainless steel ASTM A182 F316 with PTFE ball seats/seals
Stem made of stainless steel ASTM A182 F316 with stainless steel 304 stem packing and PTFE O-rings
Flange diameter: See datasheet
Bolt holes: See datasheet
Operated with built-in zinc plated steel handle
Maximum operating pressure: 16 bar (PN16) at up to 50°C
Operating temperature range: -20°C – 180°C
