Genebre Art5540 PN40 Flanged Actuated Stainless Steel 3-Way L-Port Ball Valve
| Brand: | Genebre |
|---|---|
| SKU: | 81ART5540 |
£442.74 – £3,296.82 ex. VAT
About this product

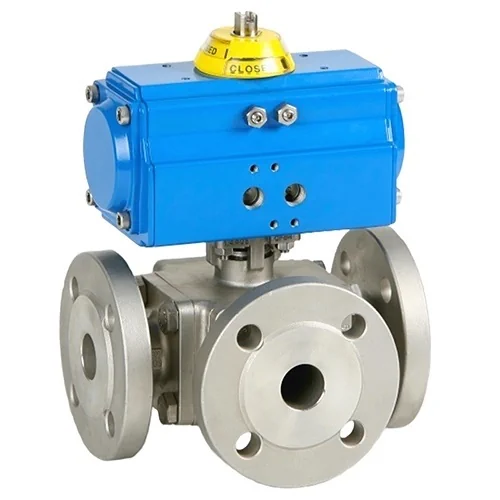

1″ Genebre Art5540 Stainless Steel Flanged 3-Way L-Port Ball Valve Fitted With a GNP Pneumatic Actuator
Actuated full bore 3-way stainless steel ball valve based on the Genebre Art2540
3-Way ball valve with an L-port ball configuration
Comes with PN40 flanged ends conforming to BS EN 1092-1:2018
Body made of shot blasted stainless steel 1.4408 (CF8M)
Ball made of stainless steel 1.4408 (CF8M)
Designed in accordance with the DIN 3357 & BS EN 12516-1 standards for industrial valves
Four ball seats, each made of PTFE & 15% graphite
Anti-static device enables use with flammable materials
Actuator mounted using the built-in ISO 5211 direct mount bracket
Blow-out proof stem made of stainless steel 316 with an FKM (Viton) O-ring
Maximum operating pressure: 40 bar (PN40)
Operating temperature range: -25°C – 180°C
Comes with a factory fitted Genebre Art5800 GNP pneumatic actuator
Rack and pinion operation with a 90° rotation (quarter turn)
Uses compressed air or any other inert gas for opening and closing the valve
Actuator feed connections: G1/4″ Threaded
Actuator feed pressure range: 2 – 8 bar
Actuator operating temperature range: -20°C – 80°C
VDI/VDE 3845 (NAMUR) mount for compatible control valves or positioners
Specification
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Actuator Type | Double Acting, Spring Return |
| Brand | |
| Connections | PN40 Flanged Ends – BS EN 1092-1:2018 |
| Manufacturing Standard | BS EN 12516-1 (DIN 3357) |
| Operation | Actuated |
| Body Material | Stainless Steel 1.4408 (Shot Blasted) |
| Ball Material | Stainless Steel 1.4408 |
| Stem Material | Stainless Steel 316 |
| Ball Seats Material | PTFE + 15% Graphite |
| Stem Packing Material | PTFE |
| Flange Diameter | See datasheet |
| Flange PCD | See datasheet |
| Flange Thickness | See datasheet |
| Flange Bolt Holes | See datasheet |
| Maximum Operating Pressure | 40 bar |
| Operating Temperature Range | -25°C – 180°C |
| Actuator Type | Art5800 GNP Pneumatic Rack & Pinion Actuator |
| Actuator Body Material | Aluminium ASTM 6005 (Painted) |
| Operating Medium | Compressed air or inert gas (2 – 8 bar) |
| Inlet Connections | 1/4" (8mm) Female BSP parallel threaded |
| Actuator Operating Temperature Range | -20 – 80 Degrees C |
| Control Valve Interface | VDI/VDE 3845 (NAMUR) |
| Additional Information | Blow-out proof stem. Anti-static device. |
| Certification Availability | 2.1 Letter of Conformity Only – Must be requested at time of order |
