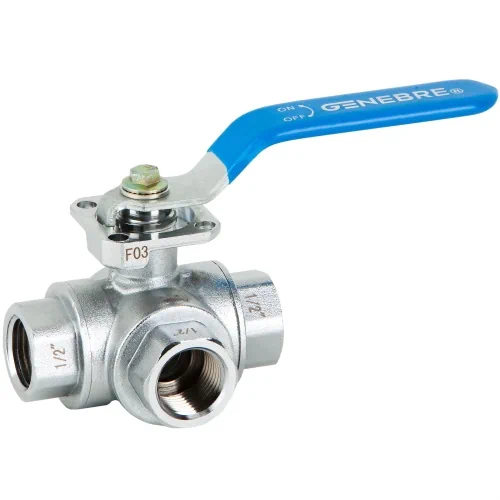

Genebre Art3282E 3-Way Brass T-Port Ball Valve (Direct Mount)

Brand: Genebre
SKU: 32ART3282

£18.53£44.81 ex. VAT

About this product

Genebre Art3282E 3-Way T-Ported Direct Mount Brass Ball Valve

Manual lever operated brass ball valve with full interior bore

2-Piece body design in CW617N brass to UNE-EN 12165 with a nickel plated finish

Female BSPP parallel threaded ends to ISO 228-1

Chrome plated T-port brass ball with PTFE ball seats/seals

Nickel plated brass stem with EPDM O-rings

Suitable for actuation with built-in ISO 5211 direct mount (F03 x 9mm)

Operated by steel lever handle

Maximum operating pressure: 25 bar (PN25) at up to 100°C

Operating temperature range: -10°C – 150°C

Specification

Weight N/A
Brand

Valve Type

Full Bore 3-Way Ball Valve (T-Port)

Connections

Female BSPP Parallel Threads – ISO 228-1, BS EN 10226-1

Operation

Manual Tee Handle Operated

Body Material

Brass (Nickel Plated)

Ball Material

Brass (Chrome Plated)

Stem Material

Brass (Nickel Plated)

Ball Seat Material

PTFE

Stem Packing Material

PTFE

Stem O-Ring Material

EPDM

ISO 5211 Direct Mount Size

See Datasheet

Maximum Operating Pressure

25 bar

Operating Temperature Range

-10°C – 150°C

Certification Availability

N/A
