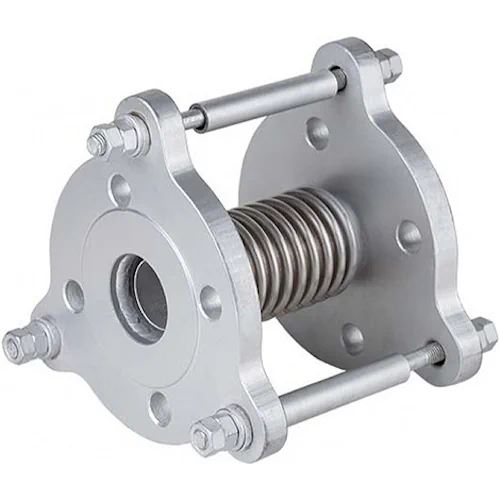

Genebre Art2835AE Metal Expansion Joint (ANSI-150 Flanged)
Expansion joint made of carbon steel and stainless steel
Bellows made of stainless steel 304 (1.4301)
Class-150 flanged ends to ASME B16.5 made of painted carbon steel
Stainless steel 304 inner sleeve to avoid excessive head loss and product accumulation inside the bellows which could reduce the work capacity of the expansion joint
Carbon steel limiting rods prevent damage from excessive movement
Flange diameter: See datasheet
Flange pitch circle diameter (PCD): See datasheet
Bolt holes: See datasheet
Reduced vibration design
Unidirectional (one-way) flow design
Maximum operating pressure: 19 bar (PN19) at up to 0°C
Operating temperature range: -40°C – 300°C.
