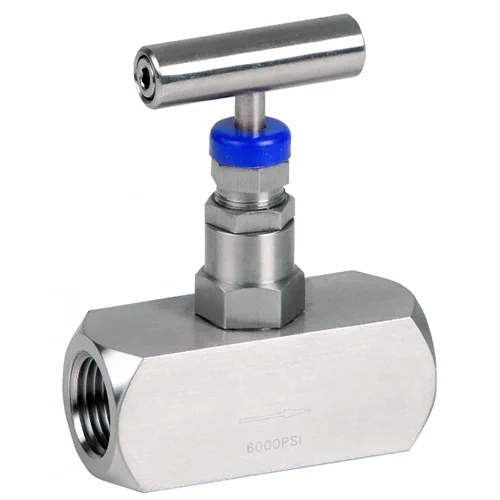

Genebre Art2225 NPT Threaded Stainless Steel Needle Valve (6000lb)

Brand: Genebre
SKU: 51ART2225

£34.68£78.19 ex. VAT

About this product

Genebre Art2225 NPT Threaded 6000lb Rated Stainless Steel Needle Valve

Body made of stainless steel 316 (ASTM A479-04)

Female NPT taper threaded ends conforming to ISO 7-1 (BS EN 10226-1)

Needle made of heat treated A182 F316 stainless steel

Stainless steel 316 bonnet with a built-in lock pin to prevent accidental loosening

Body and bonnet sealed with the body with an FKM O-ring

Stem and stem washer made of stainless steel 316 with PTFE & graphite packing

Back seating design protects the packing in fully open position

Operated with a stainless steel tee handle

Maximum operating pressure: 6000psi (410 bar) at up to 40°C

Operating temperature range: -54°C – 232°C

Specification

Weight N/A
Dimensions N/A
Brand

Valve Type

Needle Valve

Connections

Female NPT Taper Threaded – ASME B1.20.1

Operation

Manual Tee Handle Operated

Body Material

Stainless Steel 316

Needle Material

Stainless Steel 316 (Nitrogen Treated)

Stem Material

Stainless Steel 316 (Nitrogen Treated)

Body Gasket Material

FKM

Stem Packing Material

PTFE + Graphite

Maximum Operating Pressure

6000psi (413 bar)

Operating Temperature Range

-54°C – 232°C

Additional Information

Built-in bonnet safety lock. Back seating design protects packing when valve open.

Certification Availability

N/A
