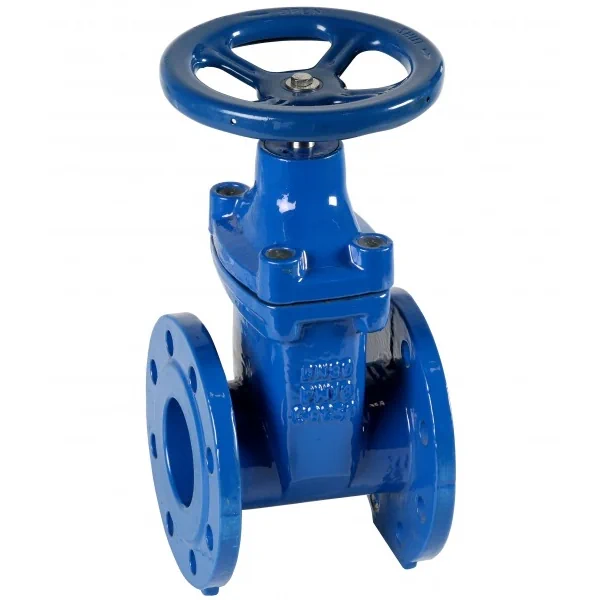

Genebre Art2102 PN16 Flanged Ductile Iron Gate Valve

Brand: Genebre
SKU: 51ART2102

£55.13£683.43 ex. VAT

About this product

Genebre Art2102 Full Bore PN16 Flanged Ductile Iron Gate Valve

Handwheel operated gate valve with a full interior bore and low head losses

Body and bonnet made of epoxy coated ductile iron EN-GJS-500 (GGG-50) sealed with an EPDM gasket

Wedge/gate made of EN-GJS-400 ductile iron with an EPDM coating

PN16 Flanged ends conforming to DIN 2501

Non-rising stem made of stainless steel 410 with a brass set nut

Manufactured to the DIN 3352 standard for steel gate valves

Face to face flange dimensions conforming to DIN 3202 (F4)

Suitable for use with non-potable water

Can be installed bidirectionally

Reduced torque

Carbon steel handwheel operated, clockwise to close, anti-clockwise to open

Maximum operating temperature: 80°C

Specification

Weight N/A
Brand

Valve Type

Full Bore Gate Valve

Connections

PN16 Flanged Ends – DIN 2501

Operation

Manual Handwheel Operated

Body Material

Ductile Iron EN-GJS-500 (Epoxy Coated)

Wedge Material

Ductile Iron EN-GJS-500 (Epoxy Coated)

Stem Material

Stainless Steel 410

Body Gasket Material

EPDM

Stem O-Ring Material

EPDM

Flange Diameter

See datasheet

Flange PCD

See datasheet

Flange Bolt Holes

See datasheet

Flange Thickness

See datasheet

Operating Temperature Range

0°C – 80°C

Additional Information

Dimensions conform to DIN 3202 F4. Non-rising stem. Reduced torque. D2102 Adapter available

Certification Availability

N/A
