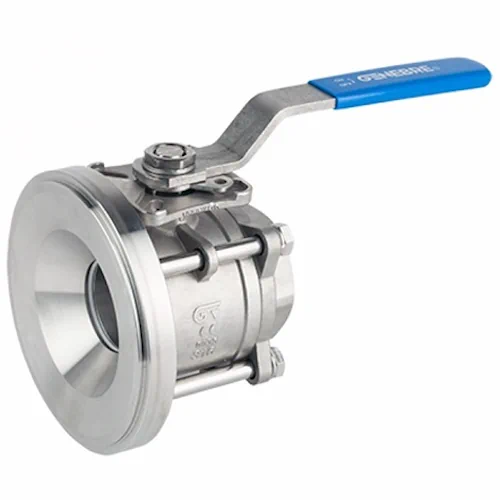

Genebre Art2052 3-Piece Stainless Steel Tank Bottom Ball Valve (PN63)

Brand:	Genebre
SKU:	51ART2052

£122.39 – £1,043.54 ex. VAT

Valve Size

Clear

About this product

Lever operated ball valve with a full interior bore

3-Piece body made of shot blasted stainless steel 316 (body & cap), tank bottom made of stainless steel 316L

Body sealed with PTFE & graphite gaskets, secured with stainless steel 304 nuts and bolts

Tank bottom and female BSPP parallel threaded ends according to ISO 7-1 (BS EN 10226-1)

Ball made of stainless steel 316 with ball seats/seals in PTFE & graphite

Blow-out proof stem in stainless steel 316 with an FKM (viton) O-ring and stem gasket made of PTFE & graphite

Integrate ISO 5211 direct mounting plate for installation of actuators

Built-in stainless steel 304 locking lever with vinyl sleeve

Maximum operating pressure: 63 bar (PN63) at up to 50°C

Operating temperature range: -25°C – 180°C

Weight	N/A
Brand	Genebre
Valve Type	3-Piece Full Bore Ball Valve
Connections	Tank Bottom x Female BSPP Threaded (ISO 7-1, BS EN 10226-1)
Operation	Manual Lever Handle Operated
Body Material	Stainless Steel 1.4408 (Shot Blasted) – Stainless Steel 316L (Tank Bottom)
Ball Material	Stainless Steel 1.4408
Stem Material	Stainless Steel 316
Body Gasket Material	PTFE + Graphite
Ball Seat Material	PTFE + 15% Graphite
Stem Packing Material	PTFE
ISO 5211 Direct Mount Size	See Datasheet
Maximum Operating Pressure	63 bar
Operating Temperature Range	-25°C – 180°C
Additional Information	Blow-out proof stem. SS304 Nuts & bolts.
Certification Availability	N/A
