Genebre Art2010 Tee Handle Male/Female Stainless Steel Ball Valve (PN63)

Brand: Genebre
SKU: 51ART2010

£10.18£20.27 ex. VAT

About this product

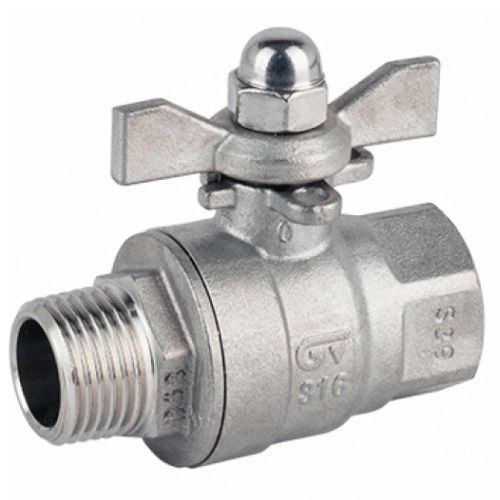

Genebre Art2010 Male/Female Stainless Steel Ball Valve

Butterfly handled M/F ball valve with a full interior ball valve

2-Piece body made of shot blasted stainless steel 1.4408 (CF8M) sealed with a PTFE gasket

Male BSPT taper & Female BSPP parallel threaded ends conforming to ISO 7-1 (BS EN 10226-1)

Stainless steel 1.4408 (CF8M) ball with ball seats/seals made of PTFE & graphite

Blow-out proof stem in stainless steel 316 with an FKM O-ring and stainless steel 304 stem packing

Butterfly handle operated

Maximum operating pressure: 63 bar (PN63) at up to 50°C

Operating temperature range: -25°C – 180°C

Specification

Weight N/A
Dimensions N/A
Brand

Valve Type

2-Piece Full Bore Ball Valve

Connections

Male/Female BSP Threaded – ISO 7-1, BS EN 10226-1

Operation

Manual Tee Handle Operated

Body Material

Stainless Steel 1.4408 (Shot Blasted)

Ball Material

Stainless Steel 316

Stem Material

Stainless Steel 304

Ball Seat Material

PTFE + 15% Graphite

Stem Packing Material

Stainless Steel 304

Stem O-Ring Material

FKM

Maximum Operating Pressure

63 bar

Operating Temperature Range

-25°C – 180°C

Additional Information

Blow-out proof stem

Certification Availability

N/A
