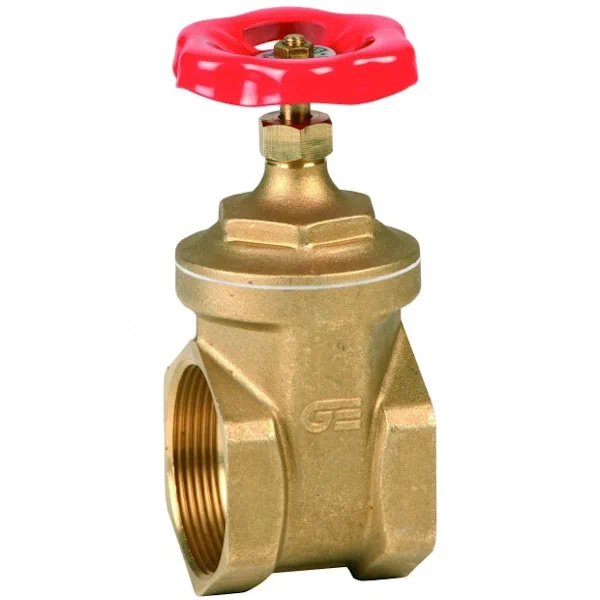

Genebre Art3220 Reduced Bore Brass Gate Valve (PN16)

Brand: Genebre
SKU: 32ART3220

£4.42£125.56 ex. VAT

About this product

Genebre Art3220 Reduced Bore Brass Gate Valve

Gate valve with a reduced interior bore

Body and bonnet made of CW617N brass conforming to UNE-EN 12165 with a PTFE sealing gasket

CW617N Brass gate

Female BSPP parallel threaded ends conforming to ISO 228/1

Stem made of CW617N brass and sealed with an NBR rubber O-ring

Steel handwheel operated

Suitable for use with both hot and cold water as well as air and oils

Maximum operating pressure: 16 bar (PN16) at up to 80°C

Operating temperature range: Air: -15°C – 105°C (Water: 0°C – 120°C)

Specification

Weight N/A
Dimensions N/A
Brand

Valve Type

Reduced Bore Gate Valve

Connections

Female BSPP Parallel Threads – ISO 228-1, BS EN 10226-1

Operation

Manual Handwheel Operated

Body Material

Brass (CW614N)

Disc Material

Brass (CW614N)

Stem Material

Brass (CW614N)

Body Gasket Material

PTFE

Stem O-Ring Material

NBR

Maximum Operating Pressure

16 bar

Operating Temperature Range

(Air) -15°C – 105°C (Water) 0° – 110°C

Certification Availability

N/A
