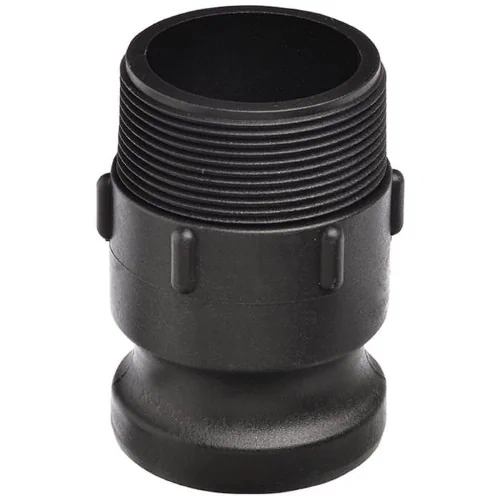

EcoCam Type F Polypropylene Male Camlock Coupling (Male BSP Threaded)

Brand: EcoCam
SKU: 90F-PP

£0.82£18.96 ex. VAT

About this product

EcoCam Type-F Polypropylene Male Camlock x Male Threaded Adapter

Polypropylene body

Male camlock

Male BSPT taper threaded end

Straight through connection

Quick connect/disconnect fittings requiring no specialised tools

Manufactured to the A-A-59326D standard (previously MIL-C-27437)

Compatible with all other camlocks to the same standard

Designed for use with low-pressure liquids, powders & granules, not suitable for compressed air or gas

Maximum operating pressure: 4 bar (60 PSI)

Specification

Weight N/A
Dimensions N/A
Brand

Coupling Type

Cam & Groove (Camlock) – Type F

Connections

Male Camlock x Male BSPT Taper Threaded (ISO 7-1, BS EN 10226-1)

Manufacturing Standard

A-A-59326D

Body Material

Polypropylene

Maximum Operating Pressure

4 bar

Additional Information

Compatible with all other camlocks to the same standard.

Certification Availability

2.1 Letter of Conformity Only – Must be requested at time of order
