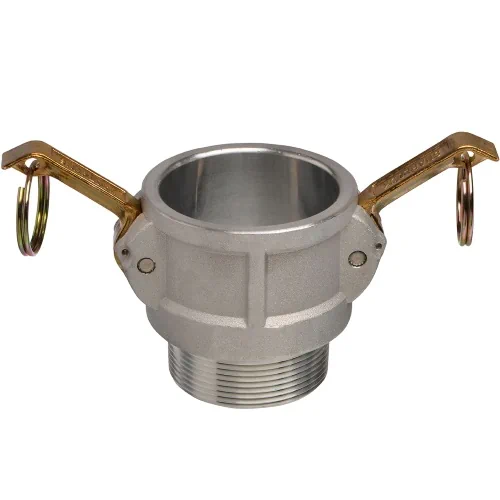

EcoCam Type B Aluminium Female Camlock Coupling (Male BSP Threaded)

Brand:	EcoCam
SKU:	90B-AL

£0.00 – £18.28 ex. VAT

Coupling Size

Clear

About this product

Aluminium body

Female camlock

Male BSPT taper threaded end

Brass handles

Nitrile rubber (NBR) seal

Straight through connection

Quick connect/disconnect fittings requiring no specialised tools

Manufactured to the A-A-59326D standard (previously MIL-C-27437)

Compatible with all other camlocks to the same standard

Designed for use with low-pressure liquids, powders & granules, not suitable for compressed air or gas

Maximum operating pressure: 10 bar (150 PSI)

Weight	N/A
Dimensions	N/A
Brand	EcoCam
Coupling Type	Cam & Groove (Camlock) – Type B
Connections	Female Camlock x Male BSPT Taper Threaded (ISO 7-1, BS EN 10226-1)
Manufacturing Standard	A-A-59326D
Body Material	Aluminium
Maximum Operating Pressure	10 bar
Additional Information	Compatible with all other camlocks to the same standard.
Certification Availability	2.1 Letter of Conformity Only – Must be requested at time of order
