Albion Art26 DZR Brass Double Regulating Valve

Brand: Albion
SKU: 31ART26

£30.78£160.03 ex. VAT

About this product

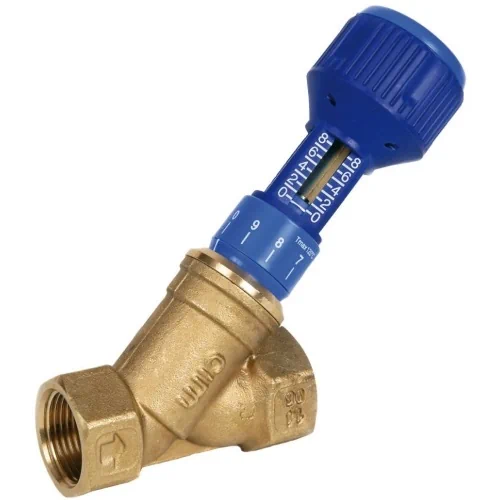

Albion Art26 DZR Brass Double Regulating Valve

Body and bonnet made of DZR (Dezincification resistant) brass

DZR brass cone with an EPDM rubber seat providing a tight shut off

Female BSPP parallel threaded ends conforming to ISO 7/1

Fixed orifice provides flow measurement accurate to within -/+ 5%

Position indicator

Non-rising DZR brass stem with nitrile rubber O-rings

Handwheel operated

Comes with a 5 year manufacturers guarantee

Maximum operating pressure: 20 bar (PN20) at up to 100°C

Operating temperature range: -10°C – 120°C

Specification

Weight N/A
Dimensions N/A
Brand

Valve Type

Double Regulating Valve

Connections

Female BSPP Parallel Threads – ISO 7-1, BS EN 10226-1

Operation

Manual Handwheel Operated

Body Material

DZR (Dezincification resistant) Brass

Cone

DZR (Dezincification resistant) Brass

Stem Material

DZR (Dezincification resistant) Brass

Cone Seat Material

EPDM

Stem O-Ring Material

NBR

Maximum Operating Pressure

20 bar

Operating Temperature Range

-10°C – 120°C

Additional Information

Built-in position indicator. Supplied with 2 brass pressure test points and extensions. 5-Year manufacturers guarantee.

Certification Availability

N/A
