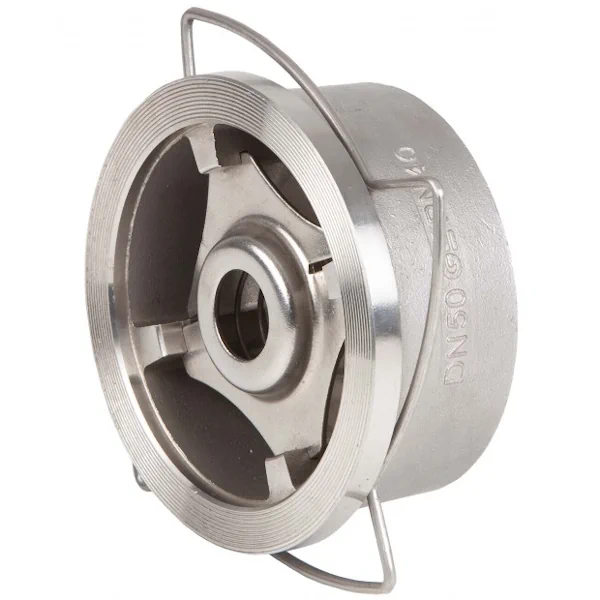

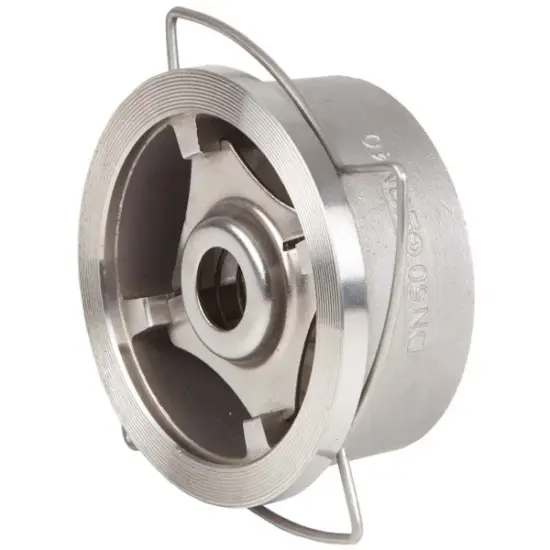

Genebre Art2415 Single Disk Stainless Steel Wafer Check Valve
Wafer type stainless steel single disk check valve with a compact design
Valve body made of shot blasted stainless steel 1.4408 (CF8M)
Wafer check valve for installation with between flanges to BS EN 1092-1 (PN10, PN16, PN25, PN40) or ANSI B16.5 (Class-150 & 300)
Polished stainless steel 1.4408 (CF8M) disk
Spring type closing mechanism with a stainless steel 316 spring
Face to face flange dimensions according to BS EN 558-1 (S.49)
Suitable for installation with vertical, horizontal or inclined flow
Built-in stainless steel centring ring
Minimum opening pressure: 24 – 30 mbar
Maximum operating pressure: 40 bar (PN40) at up to 100°C
Operating temperature range: -20°C – 240°C
