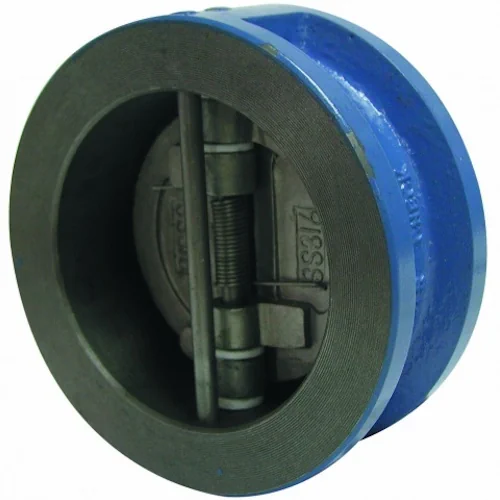

Genebre Art2401 Cast Iron Dual Plate Wafer Check Valve
Valve body made of epoxy painted cast iron (GG25) conforming to EN-GJL-250
For installation with steel pipe flanges to BS EN 1092-1 (PN10, PN16) or ASME B16.5 (Class-150)
2-Part (double) disc made of shot blasted stainless steel 1.4408 (CF8M) with an NBR rubber seat/seal
Spring type closing mechanism with a stainless steel 316 spring and centre axle
Can be installed in a vertical, horizontal or inclined position
Face to face flange dimensions conform to BS EN 558-1
Minimum opening pressure (with spring): 22 mbar
Maximum operating pressure: 16 bar (PN16) at up to 50°C
Operating temperature range: -10°C – 100°C
