Albion Art994 PRS Stainless Steel 3-Piece Ball Valve (Press Fit)

Brand: Albion
SKU: 31ART994

£36.83£118.67 ex. VAT

About this product

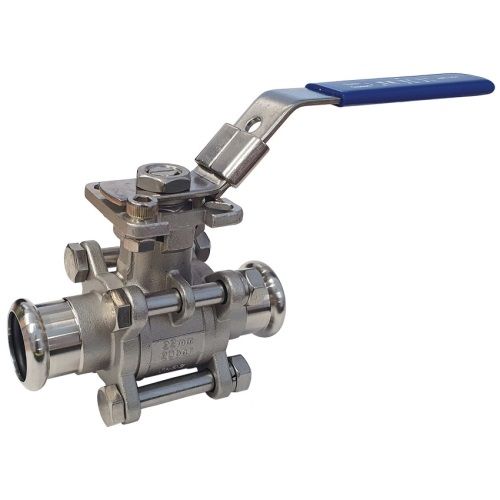

Albion Art994 PRS Stainless Steel 3-Piece Full Bore Ball Valve (Press Fit)

Full bore ball valve with 3-piece body in stainless steel CF8M, PTFE body seals

M-Profile press fit ends with non-replaceable EPDM O-rings

Stainless steel 316 ball with reinforced PTFE ball seats

Stainless steel 316 stem with PTFE seals

ISO 5211 Direct mount bracket for actuator installation

Valve torque at zero pressure: See datasheet

Manual operation via locking lever

Maximum operating pressure: 24 bar (PN24) at up to 90°C

Operating temperature range: -20°C – 120°C

Specification

Weight N/A
Dimensions N/A
Brand

Valve Type

3-Piece Full Bore Ball Valve

Connections

M-Profile Press Fit

Operation

Manual Handwheel Operated

Body Material

Stainless Steel 316 (CF8M)

Ball Material

Stainless Steel 316

Stem Material

Stainless Steel 316

Body Gasket Material

PTFE

Ball Seat Material

Reinforced PTFE

Stem Packing Material

PTFE

Maximum Operating Pressure

24 bar

Operating Temperature Range

-20°C – 120°C

Certification Availability

N/A
