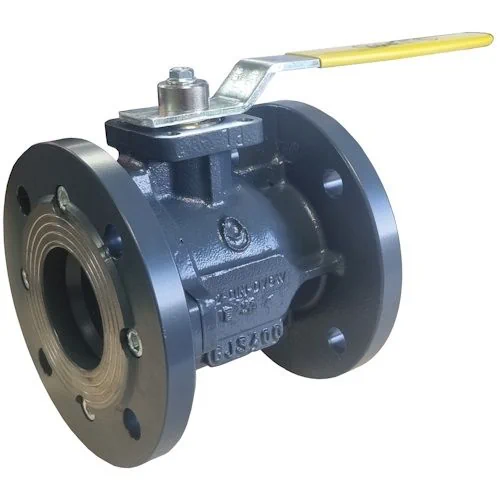

Albion Art82 PN16 Flanged Cast Iron Ball Valves
The Albion Art82 cast iron ball valve is available here in sizes between 1 1/2″ (DN40) and 6″ (D150), this new valve is the direct replacement for the older Art77 ball valve.
All Art82 ball valves are manually operated via a quarter turn lever handle, PN16 flanged and assembled with a GJS400 cast iron body, chrome plated brass ball and an anti-blow-out stem in AVP steel. PTFE Ball seats are used alongside FPM O-rings. These valves are all CE marked and hold BS EN 13774 approval making them suitable for natural gas.
All sizes are suitable for actuation using the built-in ISO 5211 direct mounting bracket and are 16 bar (PN16) pressure rated at up to 60?C with a full operating temperature range of -10?C – 60?C.
