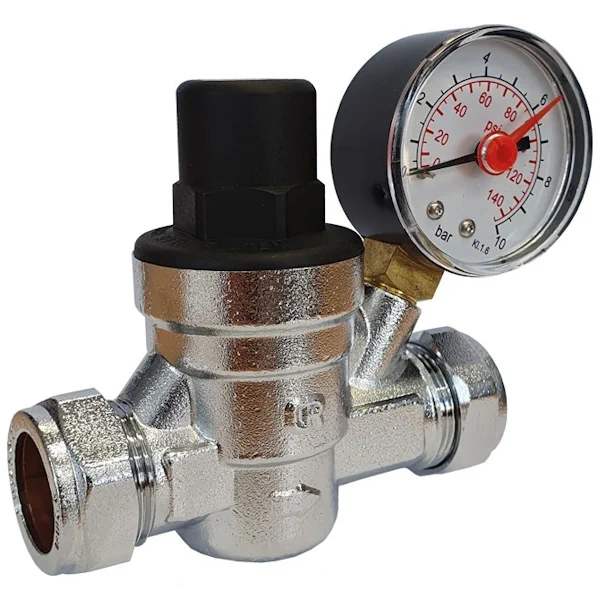

Albion Art675 DZR Brass Compression Fit Pressure Reducing Valve with Gauge
The ART 675 is a WRAS-approved pressure reducing valve designed to control both static and dynamic pressure. It features compression fitting ends, an easy-to-service high-temperature cartridge, and a built-in AISI 304 stainless steel filter. The valve is factory set to 3 bar but can be adjusted between 0.5 and 6 bar. Adapters for 15mm compression fittings are included, it ensures reliable pressure regulation in various applications.
Key Features:
- Compression fit ends with copper olives
- Easy-to-service high-temperature cartridge
- WRAS approved for drinking water
- Adjustable pressure range: 0.5 – 6 bar. Factory set to 3 bar.
- Maximum inlet pressure: 16 bar. Maximum operating temperature: 80°C
- Comes in size 22mm, adapters for 15mm included
