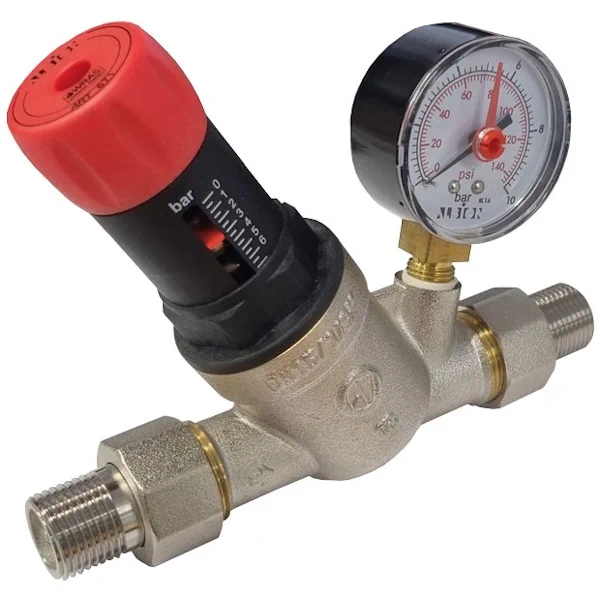

Albion Art671 Pressure Reducing Valve with Gauge
The ART 671 is a WRAS-approved pressure reducing valve designed to control both static and dynamic pressure. It features maleBSP parallel ends, an easy-to-service high-temperature cartridge, and a built-in AISI 304 stainless steel filter. The valve is factory set to 3 bar but can be adjusted between 0.5 and 6 bar. Available in sizes ranging from 1/2″ – 2″ NB, it ensures reliable pressure regulation in various applications.
Key Features:
- Male BSP parallel threaded ends (ISO 228/1)
- Easy-to-service high-temperature cartridge
- WRAS approved for drinking water
- Adjustable pressure range: 0.5 – 6 bar. Factory set to 3 bar.
- Maximum inlet pressure: 16 bar. Maximum operating temperature: 80°C
- Available in sizes 1/2″ NB (15mm) to 2″ NB (50mm)
