Albion Art640HW DZR Brass Gate Valve

Brand: Albion
SKU: 31ART640HW

£7.36£44.20 ex. VAT

About this product

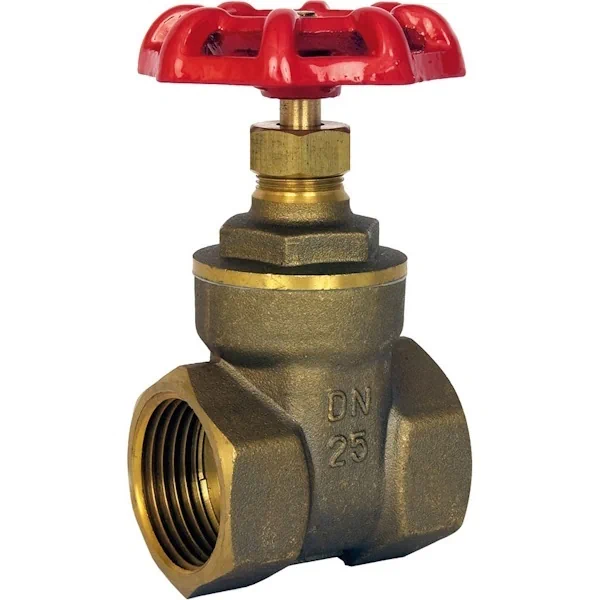

Albion Art640HW DZR Brass Gate Valve (Handwheel Operated)

Full bore gate valve with a DZR brass body, bonnet & wedge, PTFE body gasket

Female BSPT taper threaded ends conforming to ISO 7/1

Stem in DZR brass with PTFE stem packing

WRAS approved for potable (drinking) water

Suitable for use with saturated steam

Manual handwheel operation

Conforms to the BS 5154:1991 standard for copper alloy gate valves

Maximum operating pressure: 20 bar (PN20) at up to 90°C

Operating temperature range: -20°C – 170°C

Specification

Weight N/A
Dimensions N/A
Brand

Valve Type

Full Bore Gate Valve

Connections

Female BSPT Taper Threads – ISO 7-1, BS EN 10226-1

Manufacturing Standard

Conforms to BS EN 12288 (Previously BS 5154)

Operation

Manual Handwheel Operated

Body Material

DZR (Dezincification resistant) Brass

Wedge Material

DZR (Dezincification resistant) Brass

Stem Material

DZR (Dezincification resistant) Brass

Stem Packing Material

PTFE

Maximum Operating Pressure

20 bar

Operating Temperature Range

-20°C – 170°C

Approvals

WRAS Approved (Potable water).

Additional Information

Suitable for saturated steam

Certification Availability

2.1 Letter of Conformity Only – Must be requested at time of order
