1/4″ Albion Art299 Brass Binder Test Points

Brand: Albion
SKU: 31ART299008
Availability:In stock (can be backordered)

£8.58 ex. VAT

In stock (can be backordered)

About this product

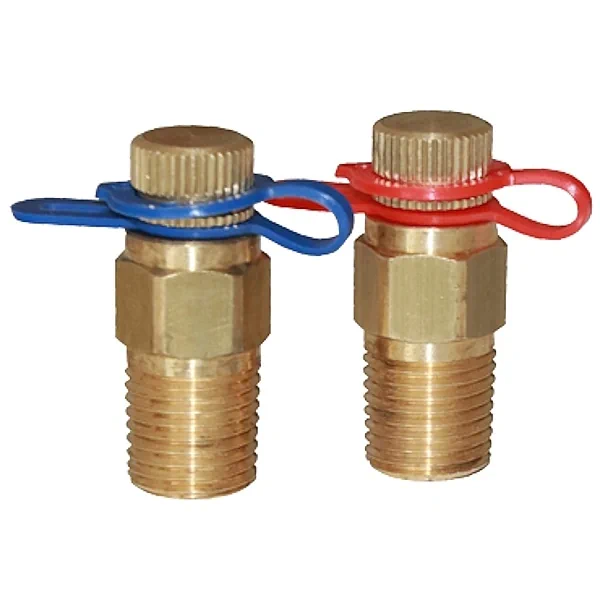

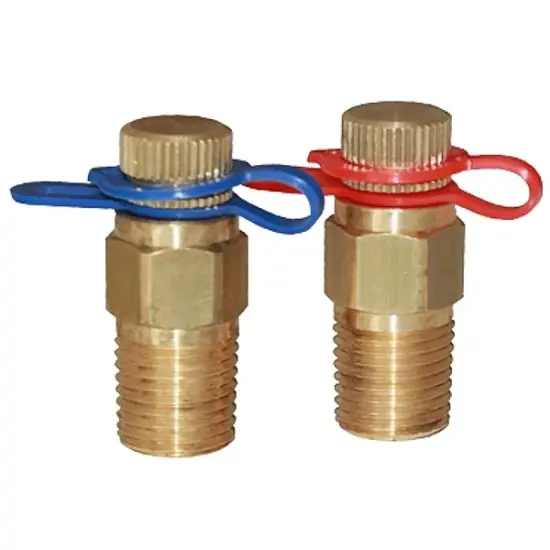

Albion Art299 DZR Brass Binder Test Points (Red & Blue Pair)

These binder test points allow easy measurement of pressure and temperature in HVAC and industrial systems. Designed with a durable DZR brass body and a self-sealing EPDM (elastomer) core, they prevent leakage and ensure reliable operation. Available in red and blue pairs for upstream and downstream identification, they support safe and accurate system monitoring.

Key Features:

  • DZR brass body for corrosion resistance
  • Male BSPT taper threaded ends
  • Self-sealing EPDM elastomeric core
  • Red and blue straps for easy identification
  • Max pressure: 35 bar, temperature range: -10°C – 135°C
  • Suitable for needle-type push-in probes

Specification

Weight 0.2 kg
Dimensions 36 × 15 × 15 mm
Valve Size

1/4" NB

Brand

Fitting Type

Binder Test Points

Connections

Male BSPT Taper Threaded Ends – ISO 7-1

Body Material

Brass (CW602N)

Sealing Material

EPDM

Maximum Operating Pressure

35 Bar

Operating Temperature Range

-10°C – 135°C

Certification Availability

N/A
