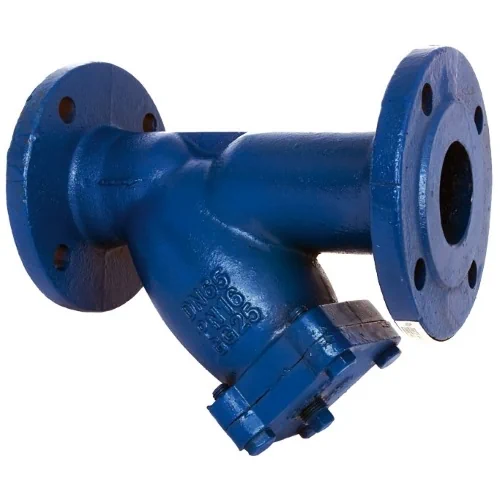

Albion Art185 Cast Iron Y-Strainer (PN16 Flanged)
Y-type strainer with a cast iron GG25 body and bonnet, sealed with a graphite body gasket
Fitted with stainless steel screen/filter
Comes with PN16 flanged ends to BS EN 1092-1:2018
Flange PCD (Pitch circle diameter): See datasheet
Flange bolt holes: See datasheet
Face to face flange dimensions conforming to BS EN 558-1 (series 1)
Maximum operating pressure: 16 bar (PN16) at up to 160°C
Operating temperature range: -10°C to 230°C
