1/2″ VK70 Brass Vacuum Breaker

SKU: 76VK70015
Availability:In stock

£92.50 ex. VAT

In stock

About this product

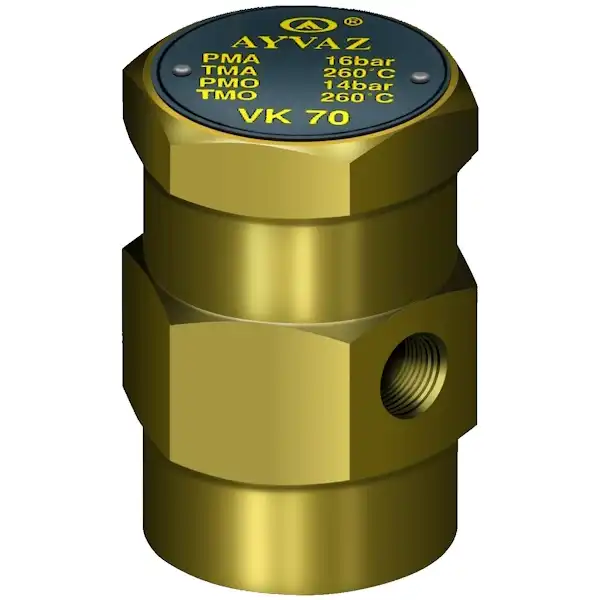

VK70 Brass Vacuum Breaker

The VK70 vacuum breaker is a compact device designed for general use in condensing vapor or liquid systems, particularly for heat exchanger applications to aid in condensate removal. It should be installed vertically and features brass construction with stainless steel internals and 1/2″ BSP threaded connections. The vacuum breaker prevents vacuum damage to systems while allowing effective condensate drainage.

Specification

Weight 0.35 kg
Dimensions 55 × 39 × 39 mm
Valve Size

1/2" NB

Valve Type

Vacuum Breaker

Connections

Female BSPT Taper Threaded (DIN 2999)

Body Material

Brass MS56

Float Material

Stainless Steel 304

Body Gasket Material

Stainless Steel 304

Seat Material

Stainless Steel 304

Maximum Operating Pressure

16 bar

Operating Temperature Range

0°C – 260°C

Certification Availability

N/A
