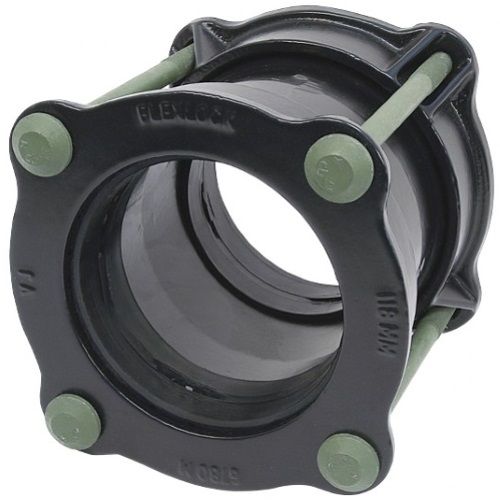

Viking Johnson FlexLock Pipe Coupling

Brand: Viking Johnson
SKU: 4505

£317.51£1,849.41 ex. VAT

About this product

Viking Johnson FlexLock Ductile Iron Pipe Coupling

Adapter body & ends rings in ductile iron (EN GJS-450-10) to BS EN 1563

Black Rilsan (nylon 11) coated for impact, abrasion, weathering and chemical resistance

Suitable for plain ended steel pipe

EPDM rubber gaskets with load-bearing stainless steel teeth

Captive, non-rotating steel bolt heads require a spanner for installation. Standard bolt torque: See datasheet

Sleeve length & thickness: See datasheet

Setting gap range: See datasheet

Allows angular deflection (up to 6°) between pipes to accommodate for normal pipeline movement

Can restrain pressure thrusts at bends without the need for thrust blocks

Maximum operating pressure: 16 bar (PN16)

Operating temperature range: -40°C – 40°C

Specification

Weight N/A
Dimensions N/A
Brand

Fitting Type

Pipe Coupling

Body Material

EN GJS-450-10 Ductile Iron (Black Rilsan Coated)

O-Rings

EPDM Rubber (with stainless steel teeth)

Maximum Operating Pressure

16 bar (Gas = 6 bar)

Operating Temperature Range

-40°C – 40°C

Additional Information

Allows angular deflection. M12 Bolts, recommended torque 55 – 65Nm.

Certification Availability

2.1 Letter of Conformity Only – Must be requested at time of order
