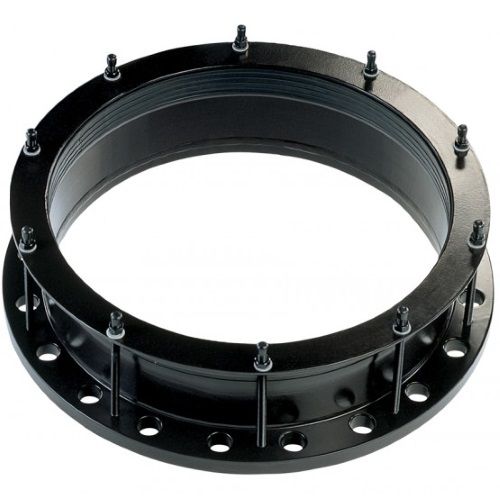

Viking Johnson Dedicated Mild Steel Large Diameter PN16 Flange Adapter
Centre sleeve & end ring and flange adapter made of mild steel (S275JR) to BS EN 10025-2
Coated in black Rilsan (nylon 11) for increased resistance to impact, corrosion, abrasion & chemical
Drillings for PN16 pipe flanges to BS EN 1092-1
For used with plain ended ductile iron pipe
EPDM Rubber gasket
Setting gap: See datasheet
Sleeve type: See datasheet
Bolt tightening torque: See datasheet
Flange bolt holes: See datasheet
Allows up to 3° of angular deflection between pipes to accommodate for normal pipeline movement
Can accommodate expansion/contraction (up to 5mm) allowing movement and eliminating the need for expansion joints in most cases
Maximum operating pressure: 16 bar (PN16)
