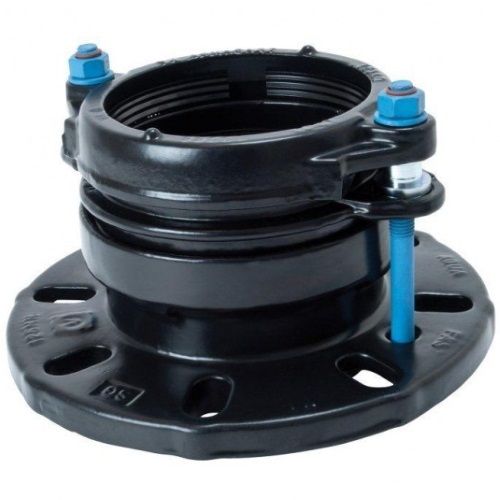

Viking Johnson AquaFast Ductile Iron PN16 Flange Adapter
Centre sleeve, flange adapter as well as gripper & intermediate rings made of ductile iron (EN-GJS-450-10) to BS EN 1563
Black Rilsan (Nylon 11) coated for increased resistance to impact, corrosion, abrasion & chemicals
Suits pipe in PVC (metric) as well as PE pipe (PE80/100) including SDR11 & SDR17 without a support liner
Drillings for PN10/16 pipe flanges to BS EN 1092-1
No disassembly or chamfering required, simply slide into place and fasten the bolts using a standard spanner
Can be used with coiled or oval pipe
Comes with EPDM rubber gaskets
Pipe setting gap: See datasheet
New and enhanced progressive gripping mechanism for greater alignment flexibility, end load restraint and prevents pipe pull-out
Metal to metal positive stop prevents overtightening and makes a torque wrench unnecessary
WRAS Approved for use with potable water
Fully restrained fitting meets the requirements of WIS 4-24-01 (Type 2) and ISO 14236.2
Maximum operating pressure: 16 bar (PN16)
Please use comments box at checkout to specify which flange size is required
