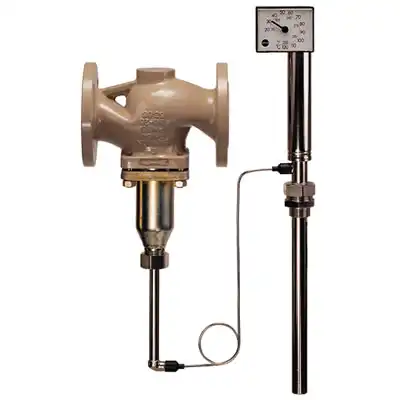

TLV TC2 Cast Steel Self Acting Temperature Regulating Valve (PN40 Flanged)

Brand: TLV
SKU: 76TC2

£3,093.00£4,323.00 ex. VAT

About this product

TLV TC2 Cast Iron Self Acting Globe Type Temperature Regulating Valve (PN40 Flanged)

Globe valve body made of cast steel A216 WCB

PN40 Flanged ends to DIN 2501 (BS EN 1092-1)

Stainless steel valve seat and plug

Self-acting design requires no external power or instrument signalling lines, simplifies installation

Wide set point range and easy set point adjustment for simple operation

Pressure-balancing bellows provide improved flow and differential pressure performance

Reliable long-life spring mechanism protects the sensor from overheat damage

Robust design minimizes maintenance

Nickel-plated copper capillary tube (3m length)

Nickel-plated bronze temperature sensor

Thermostat set-point range: 20°C – 100°C

Thermostat maximum temperature: Set-point + 100°C

Maximum differential pressure: 16 bar

Maximum operating pressure: 16 bar

Maximum operating temperature: 220°C

Specification

Weight N/A
Brand

Valve Type

Temperature Regulating Valve

Connections

PN40 Flanged (BS EN 1092-1)

Operation

Self Acting

Body Material

Cast Steel A216 WCB

Disc Material

Stainless Steel 410

Stem Material

Stainless Steel 304

Temperature Sensor Material

Bronze (Nickel Plated)

Body Gasket Material

Graphite & Metal

Seat Material

Stainless Steel 410

Maximum Operating Pressure

16 bar

Operating Temperature Range

0°C – 200°C

Additional Information

3m Capillary tube length

Certification Availability

Contact Us (Chargeable, may increase delivery time.)
