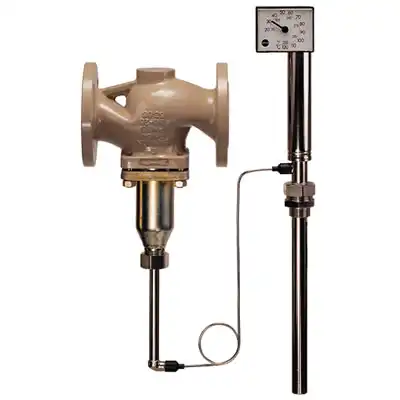

TLV TC1 Cast Iron Self Acting Temperature Regulating Valve (PN16 Flanged)

Brand: TLV
SKU: 76TC1

£1,737.00£2,666.00 ex. VAT

About this product

TLV TC1 Cast Iron Self Acting Globe Type Temperature Regulating Valve (PN16 Flanged)

Globe valve body made of cast iron A126 (EN-JL 1040)

PN16 Flanged ends to DIN 2501 (BS EN 1092-1)

Stainless steel valve seat and plug

Self-acting design requires no external power or instrument signalling lines, simplifies installation

Wide set point range and easy set point adjustment for simple operation

Reliable long-life spring mechanism protects the sensor from overheat damage

Robust design minimizes maintenance

Nickel-plated copper capillary tube (3m length)

Nickel-plated bronze temperature sensor

Thermostat set-point range: 20°C – 100°C

Thermostat maximum temperature: Set-point + 100°C

Maximum differential pressure: 25 bar

Maximum operating pressure: 13 bar

Maximum operating temperature: 200°C

Specification

Weight N/A
Brand

Valve Type

Temperature Regulating Valve

Connections

PN16 Flanged (BS EN 1092-1)

Operation

Self Acting

Body Material

Cast Iron A126

Disc Material

Stainless Steel 303

Stem Material

Stainless Steel 304

Temperature Sensor Material

Bronze (Nickel Plated)

Body Gasket Material

Graphite & Metal

Seat Material

Stainless Steel 303

Maximum Operating Pressure

13 bar

Operating Temperature Range

0°C – 200°C

Additional Information

3m Capillary tube length

Certification Availability

Contact Us (Chargeable, may increase delivery time.)
