TLV SCOSR-16 Bronze Pressure Reducing Valve

Brand: TLV
SKU: 76SCOSR16

£645.00£763.00 ex. VAT

About this product

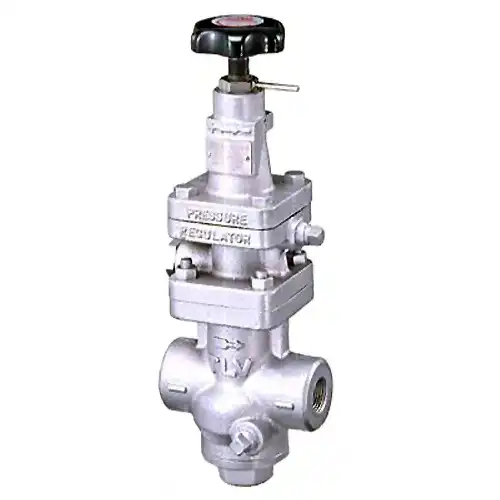

TLV SCOSR-16 Compact Bronze Pressure Reducing Valve

Main body elements made of bronze

Female BSPT taper threaded ends to DIN 2999

Compact and lightweight design allows for installation in confined spaces

Easy pressure adjustment using the top-mounted adjustment screw/handle

Self-aligning, shock absorbing spherical piston and advanced pilot regulator designs maintain secondary steam pressure accuracy, even during adverse process conditions

All major internal components are made of stainless steel, preventing rust and corrosion for a long service life

Stainless steel filter screen protects valve components for trouble-free operation and a longer service life

Internal secondary pressure sensing channel makes external sensing lines unnecessary

Maximum operating pressure: 16 bar

Maximum operating temperature: 220°C

Specification

Weight N/A
Dimensions N/A
Brand

Valve Type

Pressure Reducing Valve

Connections

Female BSPT Taper Threaded (DIN 2999)

Operation

Pilot Operated

Body Material

Bronze

Major Internals Material

Stainless Steel

Spring Material

Carbon Steel

Maximum Operating Pressure

16 bar

Operating Temperature Range

0°C – 220°C

Approvals

CE Marked (Quality). Pressure Equipment Directive (PED) 2014/68/EU Compliant (Safety).

Additional Information

1/2" BSPF condensate drain and pressure detection port. Customer to specify filter micron rating.

Certification Availability

Contact Us (Chargeable, may increase delivery time.)
