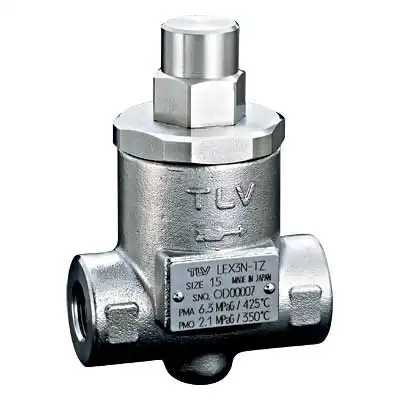

TLV LEX3N-TZ Stainless Steel Temperature Control Steam Trap

Brand: TLV
SKU: 76LEX3NTZ

£284.00£310.00 ex. VAT

About this product

TLV LEX3N-TZ Stainless Steel Thermostatic Temperature Control Steam Trap

Main body elements made of cast stainless steel A351

Female BSPT taper threaded ends to DIN 2999

Maintains temperature at a pre-set level between 50 – 200°C by setting the valve closing temperature

Saves energy by utilising the sensible heat in the condensate

Includes a built-in device for removing scale and build-up from the valve seat

Overexpansion mechanism prevents damage to the bimetal element and ensures long service life

Rapid venting of initial air and fast discharge of cold condensate reduce start-up time

Inline access to internal parts simplifies cleaning and reduces maintenance costs

Built-in stainless steel screen ensures trouble-free operation

Suitable for use on interlocking tracers using copper or stainless steel tube

For use with steam tracing lines, storage tanks, instrument enclosures, steam trap air venting, and freeze protection of condensate lines

Can be used as an automatic non-freeze valve

Condensate discharge capacity: Up to 310kg/h

Minimum operating pressure: 1 bar

Maximum operating pressure: 46 bar

Maximum operating temperature: 350°C

Specification

Weight N/A
Dimensions N/A
Brand

Valve Type

Temperature Control Trap

Connections

Female BSPT Taper Threaded (DIN 2999)

Operation

Thermostatic

Body Material

Brass C3771

Stem Material

Stainless Steel 420J2

Bimetal Element Material

Bimetal

Screen Material

Stainless Steel 430/304

Body Gasket Material

Stainless Steel 316

Seat Material

Stainless Steel 303

Seat Gasket Material

Stainless Steel 316L

Maximum Operating Pressure

46 bar

Operating Temperature Range

0°C – 350°C

Maximum Discharge Capacity

Up to 300kg/h

Approvals

Pressure Equipment Directive (PED) 2014/68/EU Compliant (Safety).

Additional Information

Minimum operating pressure 1 bar.

Certification Availability

Contact Us (Chargeable, may increase delivery time.)
