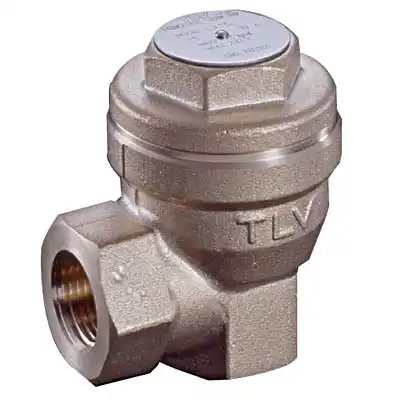

TLV LA13L Angled Brass Thermostatic Air Vent

Brand: TLV
SKU: 76LA13L

£129.00£143.00 ex. VAT

About this product

TLV LA13L Brass Balanced Pressure Thermostatic Air Vent

Main body elements made of brass C3771

Female BSPT taper threaded ends to DIN 2999

Compact design with high venting capacity

X-Element automatically vents hot air until close-to-steam temperature

Fail-open mechanism

Reacts immediately to changes in operating conditions

Hardened stainless steel valve seat

Easy to maintain and easy to clean

Suitable for use with steam

Air venting capacity: Up to 1900 l/min

Minimum operating pressure: 0.01 bar

Maximum operating pressure: 13 bar

Maximum operating temperature: 200°C

Specification

Weight N/A
Dimensions N/A
Brand

Valve Type

Air Vent

Connections

Female BSPT Taper Threaded (DIN 2999)

Operation

Thermostatic

Body Material

Brass C3771

X-Element Material

Stainless Steel

Screen Material

Stainless Steel 304

Body Gasket Material

Fluorine Resin PTFE

Seat Material

Stainless Steel 420

Maximum Operating Pressure

13 bar

Operating Temperature Range

0°C – 200°C

Maximum Discharge Capacity

Up to 2000kg/h (2t/h)

Approvals

Pressure Equipment Directive (PED) 2014/68/EU Compliant (Safety).

Additional Information

Minimum operating pressure 0.1 bar. Fail open.

Certification Availability

Contact Us (Chargeable, may increase delivery time.)
