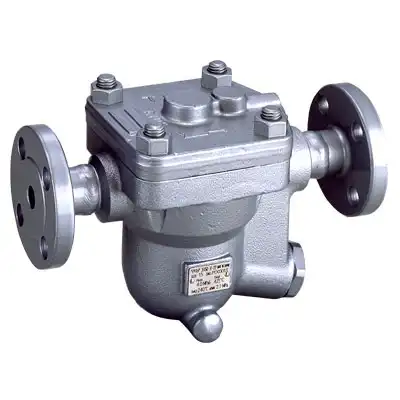

1 1/2″ TLV JH5RL-X-32 Cast Steel Free Float Steam Trap (PN40 Flanged)

Brand: TLV
SKU: 76JH5RLX-32040
Availability:In stock (can be backordered)

£1,470.00 ex. VAT

In stock (can be backordered)

About this product

1 1/2″ TLV JH5RL-X-14 Cast Steel Free Float Steam Trap (PN40 flanged)

Main body made of cast steel A216 WCB

PN40 Flanged ends to DIN 2501 (BS EN 1092-1)

Self-modulating, precision ground stainless steel float provides a steam tight seal as well as continuous, smooth, low velocity condensate discharge as process loads vary

Thermostatic capsule (X-element) with “fail open” feature vents air automatically until close-to-steam temperature ensuring a fast start-up

Built-in stainless steel screen to protect internal components and ensure trouble-free operation

Easy access to internal parts simplifies cleaning and reduces maintenance costs

Discharge capacity: Up to 500 kg/h

Maximum operating pressure: 32 bar

Maximum operating temperature: 240°C

Specification

Weight 14 kg
Dimensions 290 × 162 × 115 mm
Valve Size

1 1/2" NB

Brand

Valve Type

Steam Trap

Connections

PN25/PN40 Flanged (BS EN 1092-1)

Operation

Free Float (Mechanical)

Body Material

Cast Steel A216

Float Material

Stainless Steel 316

X-Element Material

Stainless Steel

Screen Material

Stainless Steel 430/304

Body Gasket Material

Graphite & Stainless Steel 316

Orifice Gasket

Soft Iron SUYP

Maximum Operating Pressure

32 bar

Operating Temperature Range

0°C – 220°C

Maximum Discharge Capacity

Up to 500kg/h

Additional Information

Fail-open thermostatic capsule for quick start-up.

Certification Availability

Contact Us (Chargeable, may increase delivery time.)
