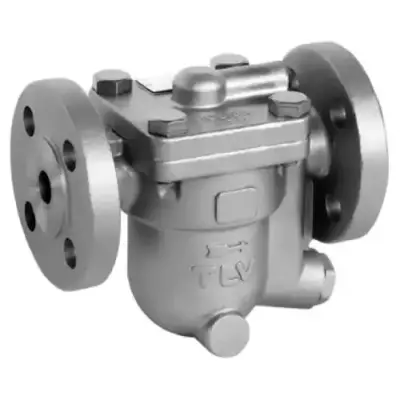

1″ TLV JF5X-8 Ductile Iron Free Float Steam Trap (PN16 Flanged)
| Brand: | TLV |
|---|---|
| SKU: | 76JF5X8025 |
| Availability: | In stock (can be backordered) |
£641.78 ex. VAT
In stock (can be backordered)
About this product
1″ TLV JF5X-8 Ductile Iron Free Float Steam Trap (PN16 Flanged)
Main body elements made of ductile cast iron GGG40
PN16 Flanged ends to DIN 2501 (BS EN 1092-1)
Self-modulating stainless steel float provides a steam tight seal as well as continuous, smooth, low velocity condensate discharge as process loads vary
Thermostatic capsule (X-element) with “fail open” feature vents air automatically until close-to-steam temperature ensuring a fast start-up
Built-in stainless steel screen to protect internal components and ensure trouble-free operation
Single moving part, the free float ensures a trouble-free service life
Easy access to internal parts simplifies cleaning and reduces maintenance costs
Discharge capacity: Up to 1000 kg/h
Maximum operating pressure: 8 bar
Maximum operating temperature: 200°C
Specification
| Weight | 6.9 kg |
|---|---|
| Dimensions | 250 × 149 × 108 mm |
| Valve Size | 1" NB |
| Brand | |
| Valve Type | Steam Trap |
| Connections | PN25/PN40 Flanged (BS EN 1092-1) |
| Operation | Free Float (Mechanical) |
| Body Material | Ductile Cast Iron GGG40.3 |
| Float Material | Stainless Steel 316 |
| X-Element Material | Stainless Steel |
| Screen Material | Stainless Steel 430/304 |
| Body Gasket Material | Fluorine Resin PTFE |
| Orifice Gasket | Ethylene Propylene Rubber |
| Maximum Operating Pressure | 8 bar |
| Operating Temperature Range | 0°C – 200°C |
| Maximum Discharge Capacity | Up to 1000kg/h (1t/h) |
| Approvals | Pressure Equipment Directive (PED) 2014/68/EU Compliant (Safety). |
| Additional Information | Fail-open thermostatic capsule for quick start-up. |
| Certification Availability | Contact Us (Chargeable, may increase delivery time.) |
