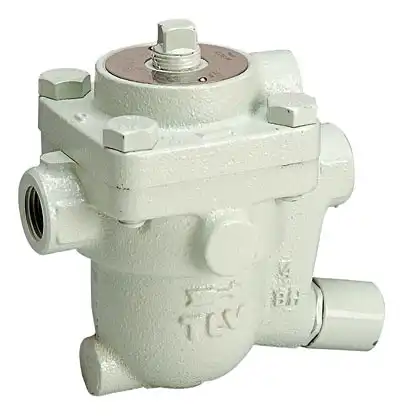

TLV JA3 Ductile Iron Free Float Air Trap

Brand: TLV
SKU: 76JA3

£257.00£295.00 ex. VAT

About this product

TLV JA3 Ductile Iron Free Float Air Trap

Main body made of ductile cast iron GGG40

Female BSPT taper threaded ends to DIN 2999

Self-modulating stainless steel float provides an air-tight seal as well as continuous, smooth, low velocity discharge as process loads vary, even under low-load

Built-in stainless steel screen to protect internal components and ensure trouble-free operation

Internal stainless steel construction with a single moving part, the free float, ensures a trouble-free service life

Easy access to internal parts simplifies cleaning and reduces maintenance costs

Manual blow down device allows cleaning of the valve seat from outside during operation

Discharge capacity: Up to 280 kg/h

Maximum operating pressure: 16 bar

Maximum operating temperature: 100°C

Specification

Weight N/A
Dimensions N/A
Brand

Valve Type

Air Trap

Connections

Female BSPT Taper Threaded (DIN 2999)

Operation

Free Float (Mechanical)

Body Material

Ductile Cast Iron

Float Material

Stainless Steel 316

Screen Material

Stainless Steel 430

Body Gasket Material

Fluorine Resin PTFE

Seat Material

NBR

Maximum Operating Pressure

16 bar

Operating Temperature Range

0°C – 100°C

Maximum Discharge Capacity

Up to 280kg/h

Additional Information

Manual blow down device. 3/8" Female BSP pressure balancing port.

Certification Availability

Contact Us (Chargeable, may increase delivery time.)
