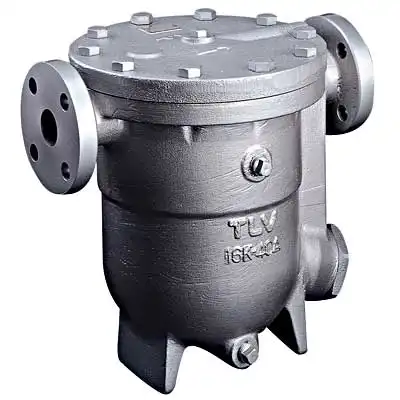

2″ TLV J7.5X-5 Cast Iron Free Float Steam Trap (PN16 Flanged)
Main body elements made of cast iron FC250
PN16 Flanged ends to DIN 2501 (BS EN 1092-1)
Self-modulating stainless steel float provides a steam tight seal as well as continuous, smooth, low velocity condensate discharge as process loads vary
Thermostatic capsule (X-element) with “fail open” feature vents air automatically until close-to-steam temperature ensuring a fast start-up
Built-in stainless steel screen to protect internal components and ensure trouble-free operation
Single moving part, the free float ensures a trouble-free service life
Easy access to internal parts simplifies cleaning and reduces maintenance costs
Discharge capacity: Up to 10000 kg/h
Maximum differential pressure: 5 bar
Maximum operating pressure: 13 bar
Maximum operating temperature: 200°C
