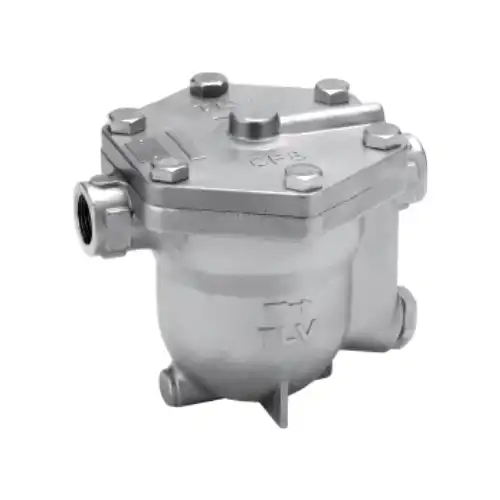

1″ TLV J6SX-5 Stainless Steel Free Float Steam Trap

Brand: TLV
SKU: 76J6SX5025
Availability:In stock (can be backordered)

£765.40 ex. VAT

In stock (can be backordered)

About this product

1″ TLV J6SX-5 Stainless Steel Free Float Steam Trap

Main body elements made of cast stainless steel

Female BSPT taper threaded ends to DIN 2999

Self-modulating stainless steel float provides a steam tight seal as well as continuous, smooth, low velocity condensate discharge as process loads vary

Thermostatic capsule (X-element) with “fail open” feature vents air automatically until close-to-steam temperature ensuring a fast start-up

Built-in stainless steel screen to protect internal components and ensure trouble-free operation

Single moving part, the free float ensures a trouble-free service life

Easy access to internal parts simplifies cleaning and reduces maintenance costs

Discharge capacity: Up to 2500 kg/h

Maximum operating pressure: 5 bar

Maximum operating temperature: 220°C

Specification

Weight 9.5 kg
Dimensions 220 × 192 × 191 mm
Valve Size

1" NB

Brand

Valve Type

Steam Trap

Connections

Female BSPT Taper Threaded (DIN 2999)

Operation

Free Float (Mechanical)

Body Material

Cast Stainless Steel A351

Float Material

Stainless Steel 316

X-Element Material

Stainless Steel

Screen Material

Stainless Steel 430/304

Body Gasket Material

Fluorine Resin PTFE

Orifice Gasket

Stainless Steel 316

Maximum Operating Pressure

5 bar

Operating Temperature Range

0°C – 220°C

Maximum Discharge Capacity

Up to 2600kg/h (2.6t/h)

Approvals

Pressure Equipment Directive (PED) 2014/68/EU Compliant (Safety).

Additional Information

Fail-open thermostatic capsule for quick start-up.

Certification Availability

Contact Us (Chargeable, may increase delivery time.)
