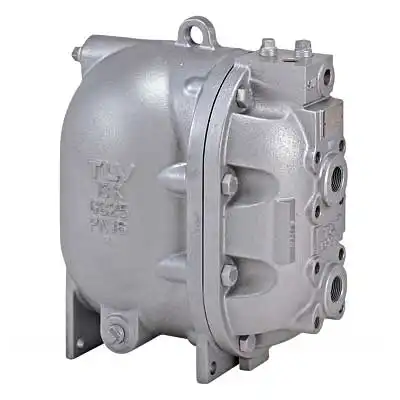

1″ TLV GT10L Cast Steel Mechanical Pump Trap
| Brand: | TLV |
|---|---|
| SKU: | 76GT10L025CS |
| Availability: | In stock (can be backordered) |
£4,685.00 ex. VAT
In stock (can be backordered)
About this product
1″ TLV GT10L Cast Steel Mechanical Pump Trap
Main body elements made of cast steel A216 WCB
Female BSPT taper threaded ends to DIN 2999 on inlet & outlet for pumped medium
1/2″ BSP threaded motive inlet, for use with saturated steam
1/2″ BSP threaded pump exhaust port/outlet
Compact pump design allows for installation in confined spaces
Built-in stainless steel steam trap
Built-in CK3MG stainless steel check valves on inlet & outlet ports for pumped medium
Can handle high-temperature steam condensate without cavitation
No electrical supply or additional controls required making the GT10L intrinsically safe
Pump will operate with a low filling-head (Minimum: 450mm)
High quality stainless steel internals with inline access guarantee easy cleaning and maintenance as well as a long service life
Ideal for a range of applications including drainage of heat exchangers, flash steam recovery systems and reservoirs, often operating under vacuum conditions
Pump discharge capacity: Up to approx. 1100 kg/h (1.1 t/h)
Maximum operating pressure (motive): 10.5 bar
Maximum operating temperature: 185°C
Specification
| Weight | 50 kg |
|---|---|
| Dimensions | 360 × 410 × 250 mm |
| Valve Size | 1" NB |
| Brand | |
| Valve Type | Condensate Recovery Pump |
| Connections | Female BSPT Taper Threaded (DIN 2999) |
| Body Material | Cast Steel A216 |
| Float Material | Stainless Steel 316 |
| Steam Trap Material | Stainless Steel |
| Body Gasket Material | Graphite Compound |
| Maximum Operating Pressure | 10.5 bar |
| Motive Medium Pressure Range | 0.3 – 10.5 bar |
| Operating Temperature Range | 0°C – 185°C |
| Maximum Discharge Capacity | Up to 11000kg/h (11t/h) |
| Approvals | CE Marked (Quality). Pressure Equipment Directive (PED) 2014/68/EU Compliant (Safety). |
| Additional Information | 1/2" BSP Motive medium inlet & exhaust outlet. Built-in steam trap, built-in check valves on condensate inlet & outlet. Intrinsically safe. Can operate with low filling head. |
| Certification Availability | Contact Us (Chargeable, may increase delivery time.) |
