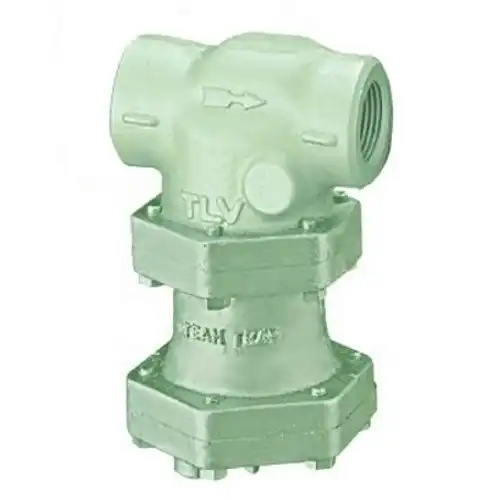

TLV DC3A-10 Ductile Iron Cyclone Separator

Brand: TLV
SKU: 76DC3A10

£1,341.00£1,429.00 ex. VAT

About this product

TLV DC3A-10 Ductile Iron Cyclone Separator

Valve body made of ductile cast iron, separator body made of cast iron

Female BSPT taper threaded ends to DIN 2999

Condensate separation as high as 98%

Built in free float steam trap discharges condensate as it’s separated

Precision-ground spherical float and positive three-point seating provide a complete seal, even under no-load conditions

1/2″ Female BSP threaded drain port on bottom of separator body

Stainless steel filter screen guarantees trouble-free service

Suitable for use with air

Long service life due to having only one moving part, the free float

Minimum operating pressure: 0.1 bar

Maximum operating pressure: 10 bar (PN10)

Maximum operating temperature: 100°C

Specification

Weight N/A
Dimensions N/A
Brand

Valve Type

Cyclone Separator

Connections

Female BSPT Taper Threaded (DIN 2999)

Body Material

Ductile Cast Iron FCD450

Screen Material

Stainless Steel 304

Separator Material

Stainless Steel SCS13

Body Gasket Material

Fluorine Resin PTFE

Maximum Operating Pressure

10 bar

Operating Temperature Range

0°C – 100°C

Additional Information

Minimum operating pressure 0.01 bar. Built-in free float steam trap. 1/2" BSP Female drain port.

Certification Availability

Contact Us (Chargeable, may increase delivery time.)
