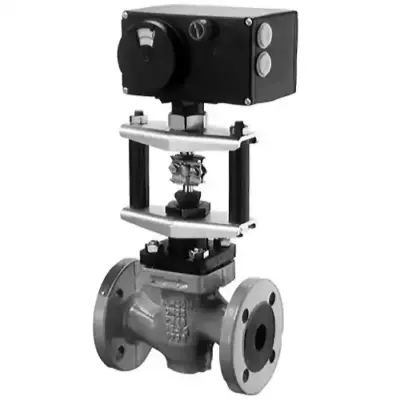

1/2″ TLV CV5 Cast Steel Electro-Pneumatic Control Valve (PN40 Flanged)

Name: 1/2" TLV CV5 Cast Steel Electro-Pneumatic Control Valve (PN40 Flanged)
SKU: 76CV5S015
Price: 2753.08 GBP
Availability: InStock

£2,753.08 ex. VAT

In stock (can be backordered)

About this product

Main body elements made of cast steel

PN40 flanged ends to BS EN 1092-1

Top mounted aluminium I/P positioned electro-pneumatic actuator (fail-closed) and digital I/P positioner

G1/4″ Female threaded compressed air inlet for actuator

Suitable for use with steam, air and water among other fluids

Rolling actuator diaphragm ensures linearity over operating stroke and maximises life

Self adjusting positioner with zero calibration due to auto-tuning, ensures tight shut off and improves control during low flow

Positioner LCD allows simple operation with capacitive keys and displays valve travel and error codes

Self-adjusting chevron packing minimises seal leaks, stem wear and stiction/hysteresis problems

Air supply pressure range: 4 – 6 bar

Maximum operating pressure: 25 bar (PN25)

Maximum operating temperature: 220°C

Weight	9.5 kg
Dimensions	130 × 332 × 130 mm
Valve Size	1/2" NB
Brand	TLV
Valve Type	Control Valve
Connections	PN40 Flanged (BS EN 1092-1)
Operation	Pneumatically Actuated
Body Material	Cast Steel 1.0619
Disc Material	Stainless Steel 303
Stem Material	Stainless Steel 303
Body Gasket Material	Graphite
Seat Material	Stainless Steel 303
Maximum Operating Pressure	25 bar
Operating Temperature Range	0°C – 200°C
Actuator Type	Electro-Pneumatic Actuator
Actuator Body Material	Aluminium (GD-Al Si 12)
Actuator Operating Medium	Compressed air (3.7 – 6 bar)
Actuator Inlet Connections	1/4" (8mm) Female BSP parallel threaded
Actuator Operating Temperature Range	-20°C – 80°C
Additional Information	Built-in positioner (4 to 20mA). IP66 Rated actuator, fail closed.
Certification Availability	Contact Us (Chargeable, may increase delivery time.)
