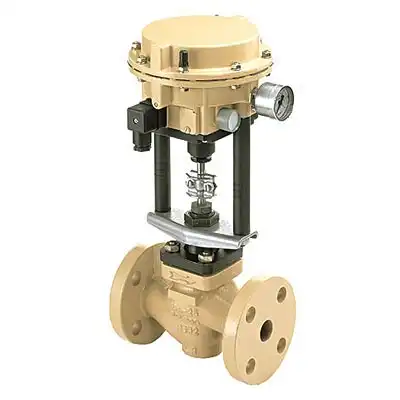

TLV CV5 Cast Steel Electro-Pneumatic Control Valve (PN40 Flanged)

Brand: TLV
SKU: 76CV50

£2,771.00£3,085.00 ex. VAT

About this product

TLV CV5 Cast Steel Electro-Pneumatic Control Valve (PN40 Flanged)

Main body elements made of cast steel

PN40 flanged ends to BS EN 1092-1

Top mounted aluminium I/P positioned electro-pneumatic actuator (fail-closed) and digital I/P positioner

Female threaded compressed air inlet for actuator

Suitable for use with steam, air and water among other fluids

Rolling actuator diaphragm ensures linearity over operating stroke and maximises life

Self adjusting positioner with zero calibration due to auto-tuning, ensures tight shut off and improves control during low flow

Positioner LCD allows simple operation with capacitive keys and displays valve travel and error codes

Self-adjusting chevron packing minimises seal leaks, stem wear and stiction/hysteresis problems

Air supply pressure range: 4 – 6 bar

Maximum operating pressure: 25 bar (PN25)

Maximum operating temperature: 220°C

Specification

Weight N/A
Dimensions N/A
Brand

Valve Type

Control Valve

Connections

PN40 Flanged (BS EN 1092-1)

Operation

Pneumatically Actuated

Body Material

Cast Iron EN-JL1040

Disc Material

Stainless Steel 303

Stem Material

Stainless Steel 303

Body Gasket Material

Graphite

Seat Material

Stainless Steel 303

Maximum Operating Pressure

16 bar

Operating Temperature Range

0°C – 200°C

Actuator Type

Electro-Pneumatic Actuator

Actuator Body Material

Aluminium (GD-Al Si 12)

Actuator Operating Medium

Compressed air (3.7 – 6 bar)

Actuator Inlet Connections

1/4" (8mm) Female BSP parallel threaded

Actuator Operating Temperature Range

-20°C – 80°C

Additional Information

Built-in positioner (4 to 20mA). IP66 Rated actuator, fail closed.

Certification Availability

Contact Us (Chargeable, may increase delivery time.)
