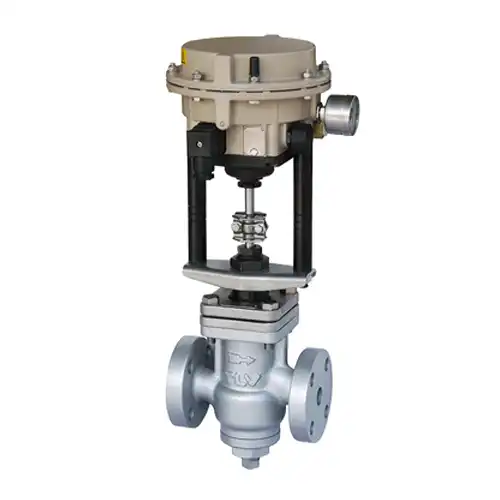

TLV CV-COSR-16 Ductile Iron Steam Control Valve (PN25/40 Flanged)

Brand: TLV
SKU: 76CVCOSR

£0.00 ex. VAT

About this product

TLV CV-COSR-16 Ductile Iron Electro-Pneumatic Control Valve (PN25/40 Flanged)

Main body elements made of ductile iron GGG40

PN25/PN40 raised face flanged ends to DIN 2501 (BS EN 1092-1)

Top mounted aluminium I/P positioned electro-pneumatic actuator (fail closed) and digital I/P positioner

Zero/span adjustment can be performed by auto-tuning via the positioner menu

Self-adjusting chevron packing minimises seal leaks, stem wear and stiction/hysteresis problems

A condensate drainage port is located at the bottom of the valve body

Suitable for use with steam, air and water as well as other fluids

Female BSPP threaded compressed air input

Air supply pressure range: 4 – 6 bar

Maximum operating pressure: 13 bar

Maximum operating temperature: 200°C

Specification

Weight N/A
Dimensions N/A
Brand

Valve Type

Control Valve

Connections

PN25/PN40 Flanged (BS EN 1092-1)

Operation

Pneumatically Actuated

Body Material

Ductile Cast Iron GGG40.3

Disc Material

Stainless Steel 304

Stem Material

Stainless Steel 304

Body Gasket Material

Fluorine Resin PTFE

Seat Material

Stainless Steel 304

Maximum Operating Pressure

16 bar

Operating Temperature Range

0°C – 220°C

Actuator Body Material

Aluminium (GD-Al Si 12)

Actuator Operating Medium

Compressed air (3.7 – 6 bar)

Actuator Inlet Connections

1/4" (8mm) Female BSP parallel threaded

Actuator Operating Temperature Range

-20°C – 80°C

Additional Information

Built-in positioner (4 to 20mA). IP66 Rated actuator, fail closed.

Certification Availability

Contact Us (Chargeable, may increase delivery time.)
