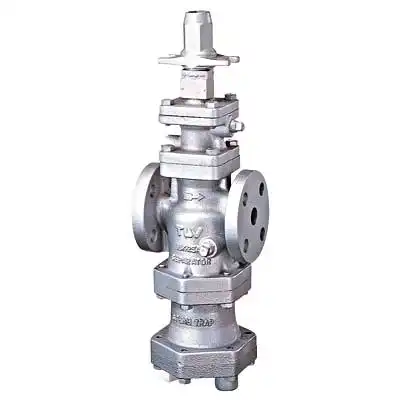

TLV COS Ductile Iron Pressure Reducing Valve (PN25/40 Flanged)

Brand: TLV
SKU: 76COSPECT

£2,420.00£10,416.00 ex. VAT

About this product

TLV COS Ductile Iron Pilot Operated Pressure Reducing Valve (PN25/40 Flanged)

Available as COS-3, COS-16 or COS-21

GGG40 Ductile iron body with main internal components in stainless steel

PN25/PN40 Raised face flanged ends to BS EN 1092-1 (DIN 2501)

Pilot operated with self-aligning, shock absorbing spherical piston maintains supplies steam at a constant pressure, even during adverse process conditions

Compact design with built-in strainer, separator & steam trap maximises performance, reduces maintenance and simplifies system layout

Built-in cyclone separator and steam trap removes and discharges up to 98% of entrained condensate

Built-in stainless steel strainer removes solid particles from steam flow, protecting internal components

Pressure equipment directive (PED) 2014/68/EU & CE approved

Internal secondary pressure sensing channel makes external sensing line unnecessary

Primary operating pressure range: Varies by model, see datasheet

Pressure adjustment range: Varies by model, see datasheet

Maximum operating temperature: 220°C

Specification

Weight N/A
Dimensions N/A
Brand

Valve Type

Pressure Reducing Valve

Connections

PN16/PN25 Flanged (BS EN 1092-1)

Operation

Pilot Operated

Body Material

Ductile Cast Iron GGG40.3

Major Internals Material

Stainless Steel

Spring Material

Carbon Steel

Maximum Operating Pressure

16 bar

Operating Temperature Range

0°C – 220°C

Maximum Discharge Capacity

See datasheet

Approvals

CE Marked (Quality). Pressure Equipment Directive (PED) 2014/68/EU Compliant (Safety).

Additional Information

Built-in separator, screens and free float steam trap.

Certification Availability

Contact Us (Chargeable, may increase delivery time.)
